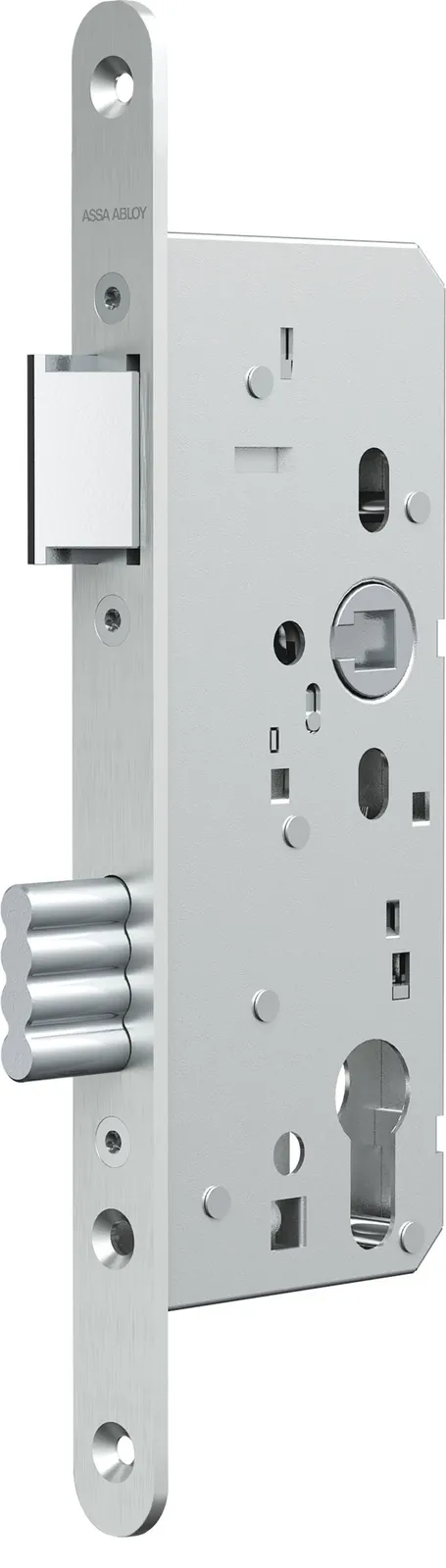

Fire-rated mortise lock OneSystem N1050

N1050-2 · Locks

Ref. N1050

Made to order

N1050 is a lock OneSystem with a latch and a bolt for standard single-leaf doors, certified for fire barriers according to EN 1634. Closed-type case, 20 mm bolt with anti-forcing protection. Suitable for doors in public buildings with fire safety requirements.

Specifications

Brand

ASSA ABLOY, Швеция

SKU

N1050-2

Type

Lock with latch and bolt

Series

OneSystem

Backset

Backset 17 mm

Bolt projection

20 mm per turn

Cylinder type

Euro profile, Swiss round profile

Standards

EN 12209, EPD according to EN 15804

Service life

1 000 000 cycles, door up to 300 kg

Fire resistance

Approval according to EN 1634

Faceplate

Stainless steel

Files

• Data sheetOneSystem N1050 Sash Lock: Datasheet
