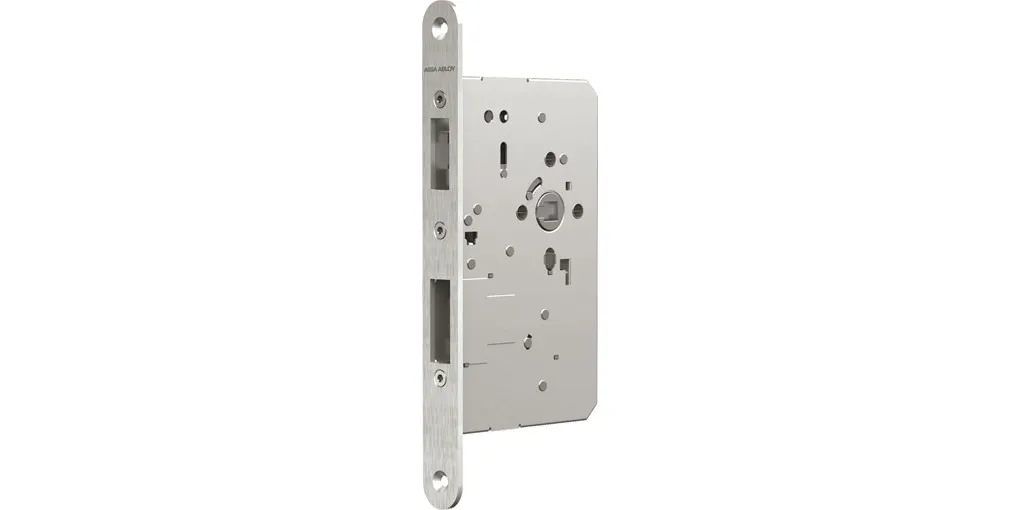

Passive-leaf lock OneSystem N1420

N1420 · Locks

Ref. N1420

Made to order

N1420 is a lock for automatically locking the passive leaf of standard double doors at the top and bottom. Used together with main locks N11XX/N14XX on the active leaf. The VarioFix system allows the position to be adjusted after installation; approval for fire-rated doors — according to EN 1634.

Specifications

Brand

ASSA ABLOY, Швеция

SKU

N1420

Type

Passive-leaf lock

Series

OneSystem

Compatibility

Main lock N11XX

Standards

EN 179, EN 1125, EN 12209, EN 1634

Service life

1 000 000 cycles, door up to 300 kg

Function

VarioFix — subsequent adjustment
