Activera S Shower column Showerpipe 240 1jet EcoSmart Reno Varia

28074000 · Shower systems · Made to order

Ref. 28074000

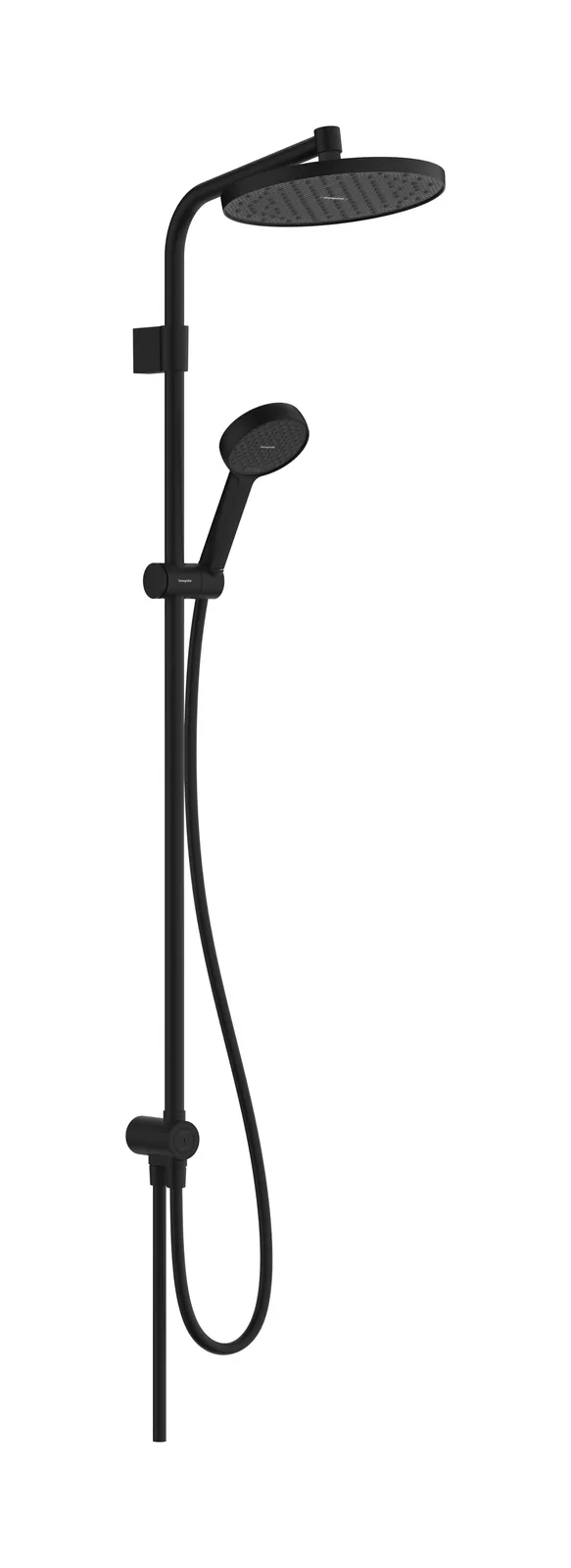

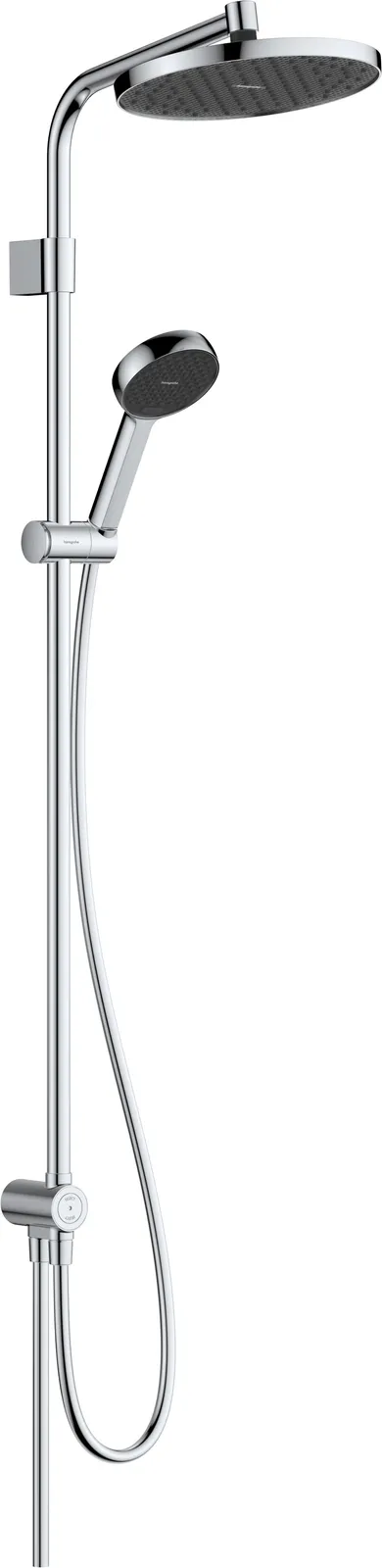

The Hansgrohe Activera S shower system combines an overhead shower and a hand shower with a control element in one ready-made solution for the shower area. In this model the Select button allows switching between modes with a single press, while EcoSmart limits water consumption and reduces heating costs. Maximum flow rate at 3 bar pressure: 7.7 l/min. The model is available in 2 finishes, including: chrome, matt black.

Specifications

Brand

Hansgrohe, Германия

SKU

28074000

Finish

хром

Size

240 мм

Type

Shower system

Brand

Hansgrohe (Germany)

Series

Activera S

Article number

28074000

Finish

chrome

Article numbers by finish/version

28074000 — chrome; 28074670 — matt black

Technologies

EcoSmart, Select, Variofix, XXL Performance

Spray types

Rain

Contents

overhead shower, hand shower, shower rail, slider, shower hose

Overhead shower size

240 mm

Overhead shower spray type

Rain

Spray disc surface

graphite

FlexPower

nozzles adjust automatically to the water pressure

QuickClean+

flexible nozzles reduce limescale build-up

Flow regulator

8 l/min (with possible tolerance -20 %)

Hand shower spray type

Rain, ImpactRain

Max. hand shower flow at 3 bar

7.7 l/min

Max. Showerpipe flow at 3 bar

8 l/min

Min. flow pressure

0.5 bar

Max. operating pressure

6 bar

Swivel joint

adjustable tilt angle of the overhead shower

Installation type

exposed mounting

Variable distance between holes

750 - 850 mm

Rail diameter

22 mm

Arm length

344 mm

Water supply

Isiflex shower hose 80 cm

Connection size

DN15

Connection thread

G ½

Features

Activera S 240 1jet overhead shower; spray switching with the Select button on the hand shower; the two functions do not operate simultaneously; adjustable wall mounting; the bar can be shortened in height; height-adjustable slider with locking button; suitable for instantaneous water heaters; removable shower head
