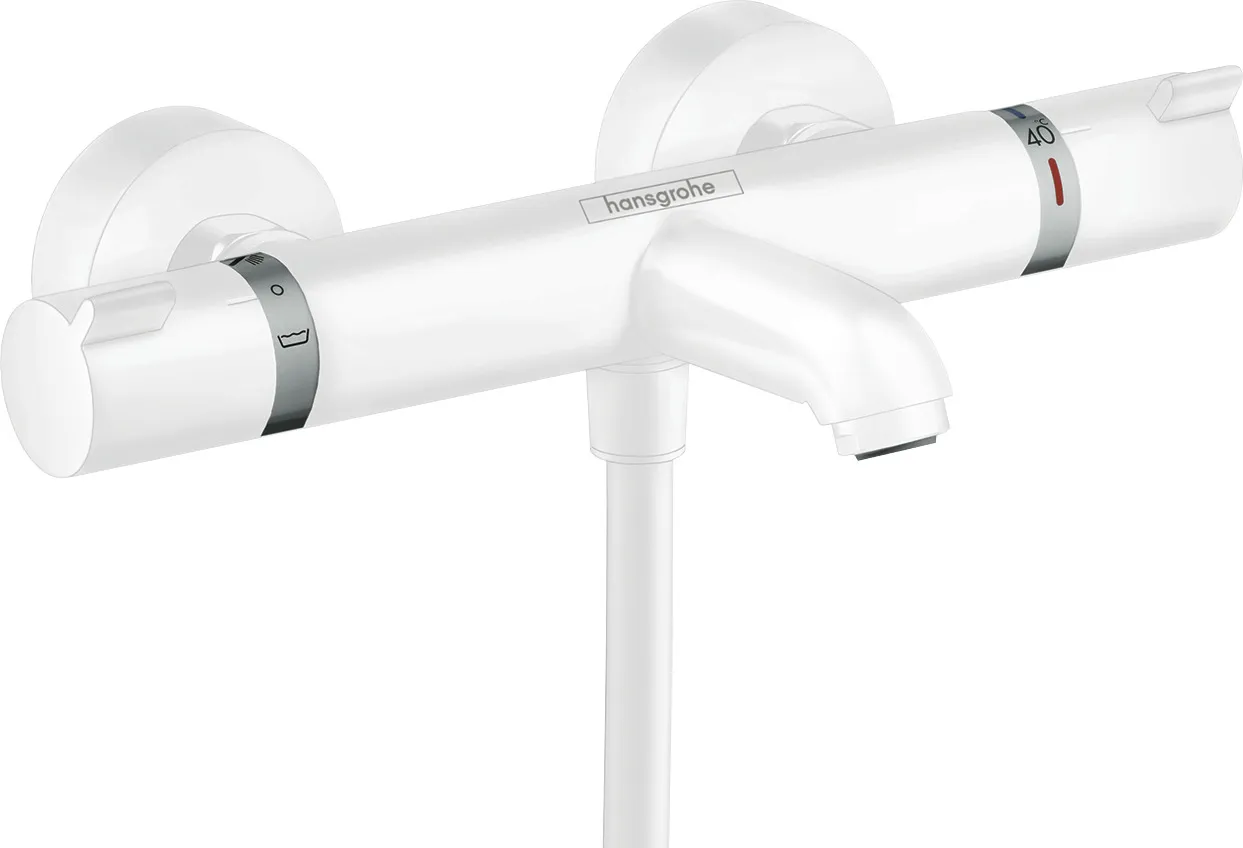

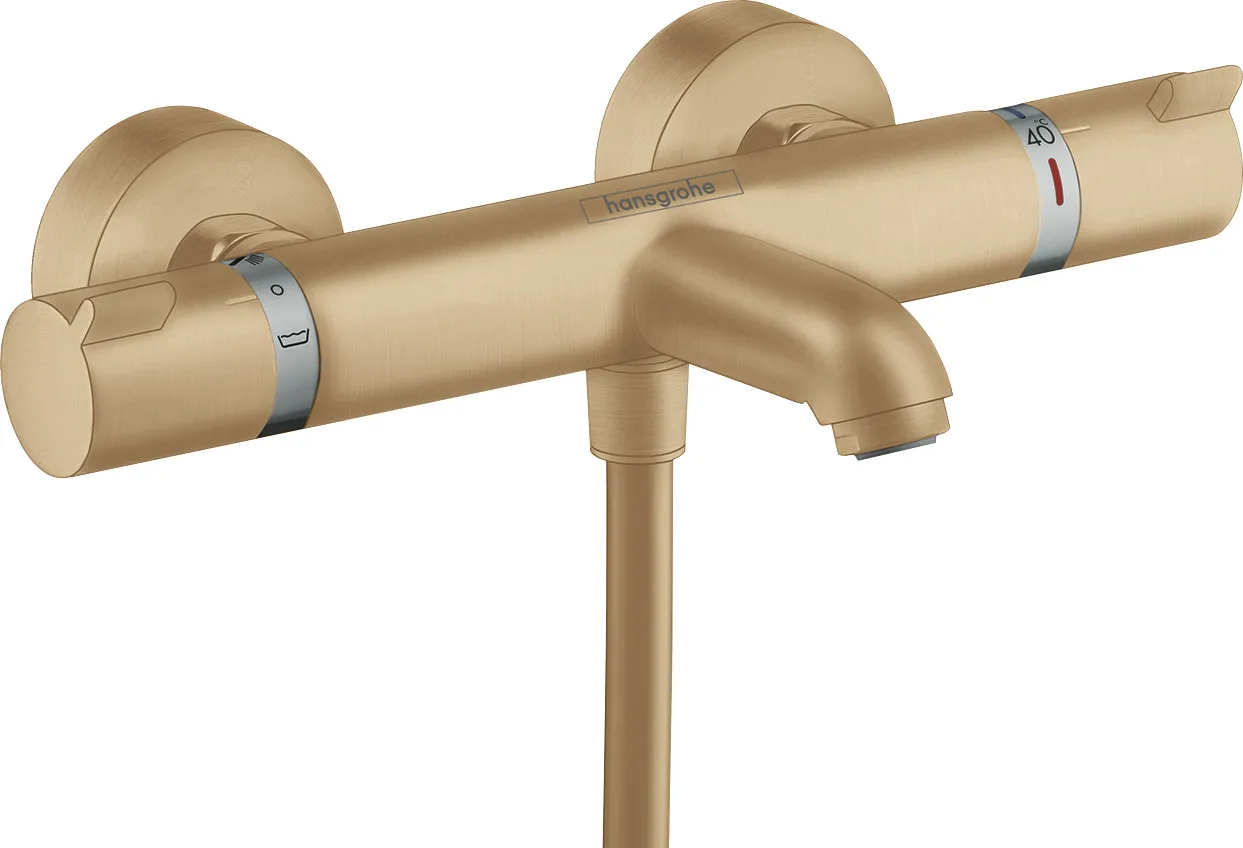

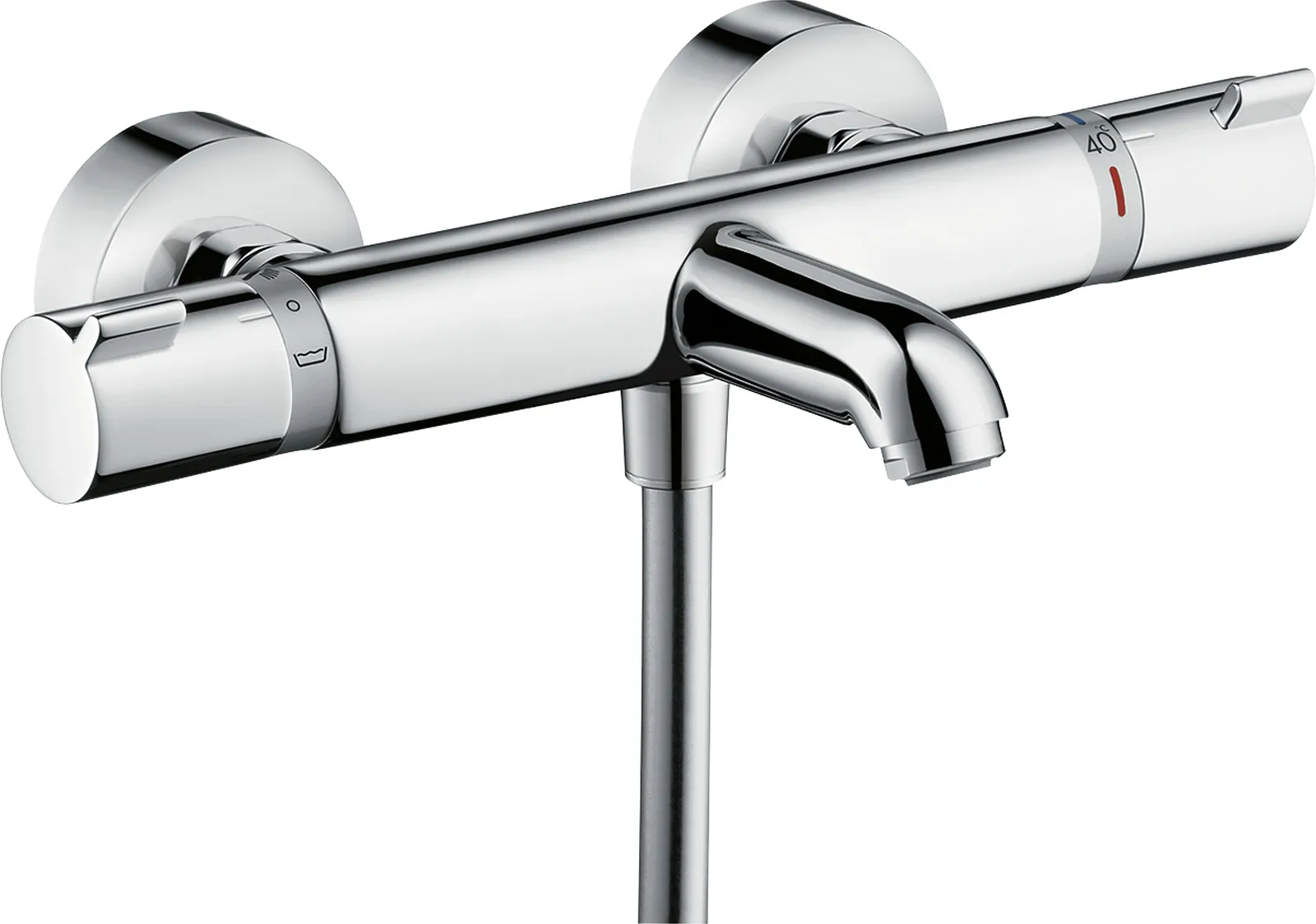

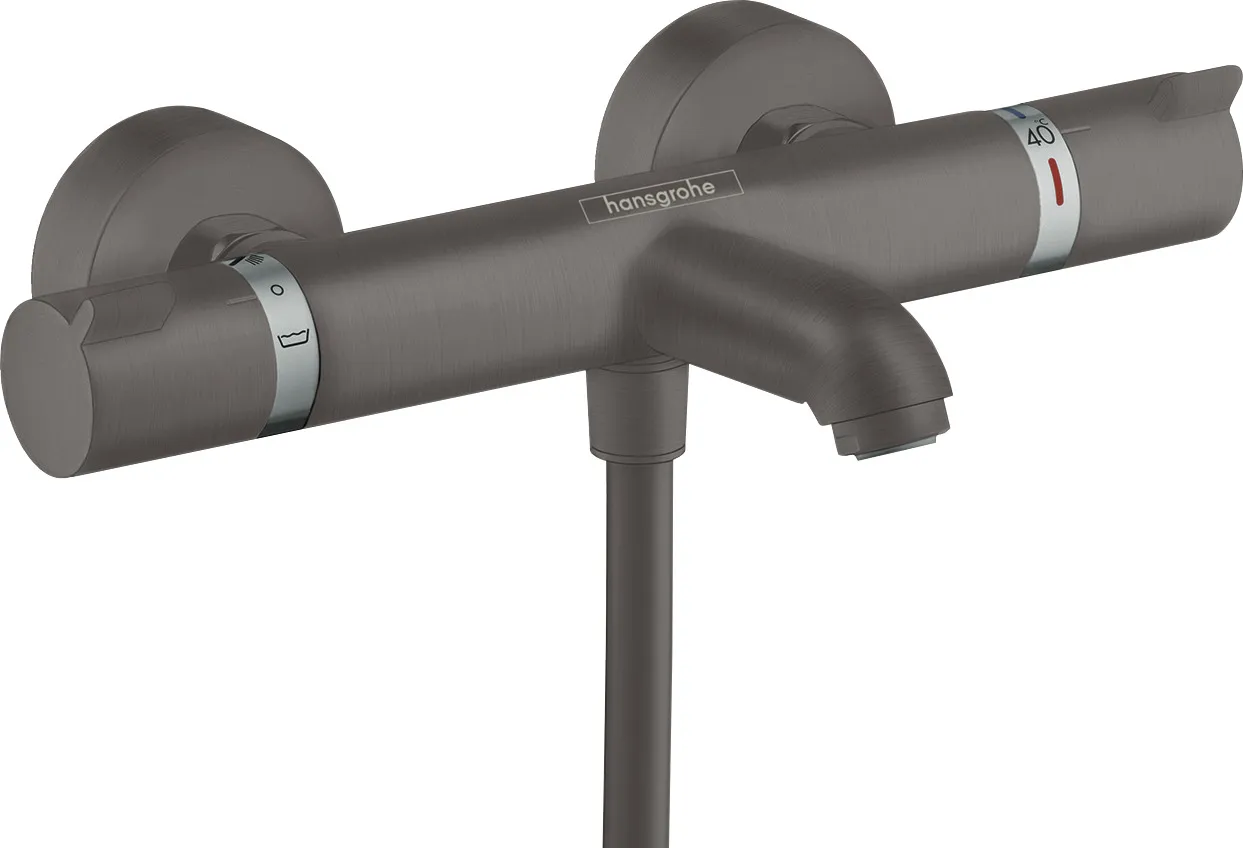

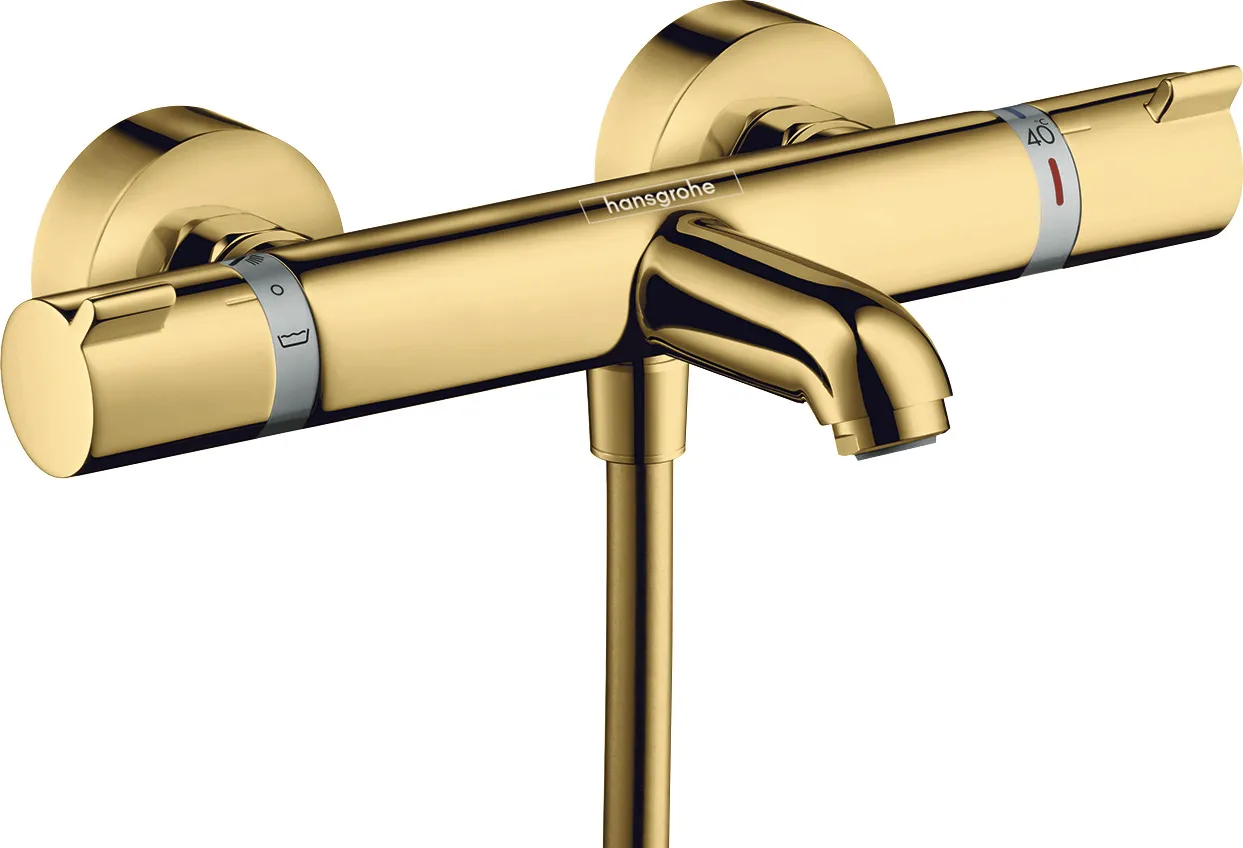

Ecostat Comfort Bath thermostat for exposed installation

13114000 · Mixers

Ref. 13114000

Made to order

The Hansgrohe Ecostat Comfort thermostat maintains a stable water temperature and makes showering safe and comfortable. In this model, AirPower technology infuses the water with air, giving a soft, full spray at lower consumption, and the thermostat maintains the set water temperature. Maximum flow rate at 3 bar pressure — 20 l/min. The model is available in 6 finishes, including: chrome, brushed bronze, brushed black chrome, matt black.

Specifications

Brand

Hansgrohe, Германия

SKU

13114000

Finish

хром

Size

DN15

Type

Thermostat

Brand

Hansgrohe (Germany)

Series

Ecostat Comfort

Article number

13114000

Finish

chrome

Article numbers by finish/version

13114000 — chrome; 13114007 — chrome; 13114140 — brushed bronze; 13114340 — brushed black chrome; 13114670 — matt black; 13114677 — matt black; 13114700 — matt white; 13114990 — polished gold optic

Technologies

AirPower, QuickClean, SafetyStop

Type spray spout

NormalSpray

Max. flow at 3 bar

20 l/min

Bath spout flow rate at 3 bar

20 l/min

Max. hand shower flow at 3 bar

16 l/min

Min. operating pressure

1 bar

Max. operating pressure

10 bar

Handle material

Metal

Connection size

DN15

Connection type

G ½

Centre-to-centre distance

150 ± 12 mm

Features

projection 177 mm; 2 functions; thermostatic cartridge, shut-off/diverter valve; temperature limiter at 40 °C; adjustable temperature limit; non-return valve; with silencer; suitable for instantaneous water heaters; strainer included
