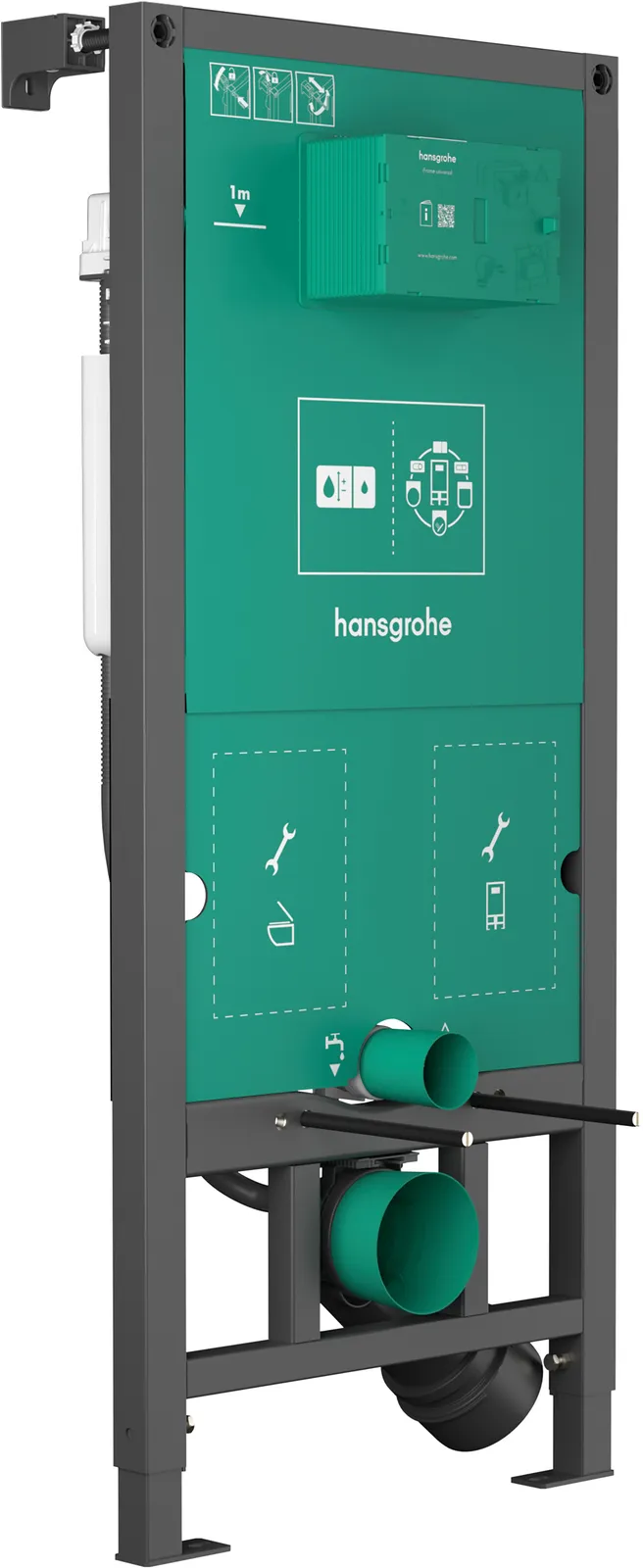

IFrame universal Concealed cistern 1120 for wall-hung WC
01022180 · Toilets
Ref. 01022180
Made to order
Quantity
The Hansgrohe iFrame universal WC combines a modern form with a hygienic bowl design.
Specifications
- Brand
- Hansgrohe, Германия
- SKU
- 01022180
- Size
- R ½
- Type
- WC
- Brand
- Hansgrohe (Germany)
- Series
- iFrame universal
- Article number
- 01022180
- Material
- steel
- Cistern material
- plastic
- Waste pipe material
- Polypropylene (PP)
- Cistern quality class
- Polyethylene (PE)
- Outer diameter of flush pipe
- 45 mm
- Distance between WC fixings
- 180 mm, 230 mm
- Waste pipe depth adjustment
- 75 - 115 mm
- Water inlet position
- rear, side
- Wall type
- stud wall (plasterboard)
- Outer diameter of waste pipe
- 90 mm
- Water connection size
- R ½
- Water supply
- external thread
- Flush volume (factory setting)
- 6 l, 3 l
- Full flush volume
- 6 l - 4,5 l
- Partial flush volume
- 3 l
- Wall fixing
- with wall fixing
- Noise class
- I
- Features
- flush flow can be adjusted
