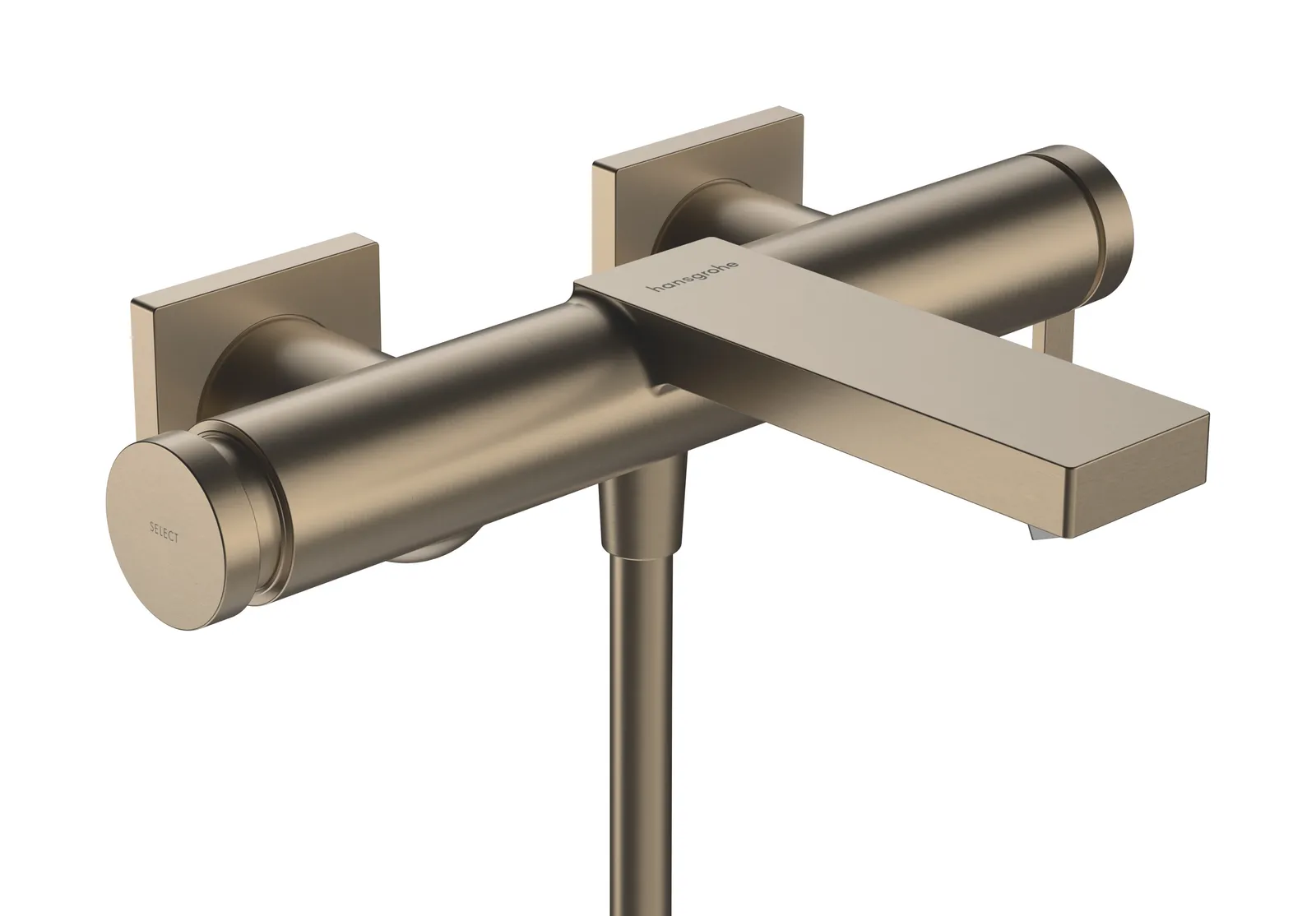

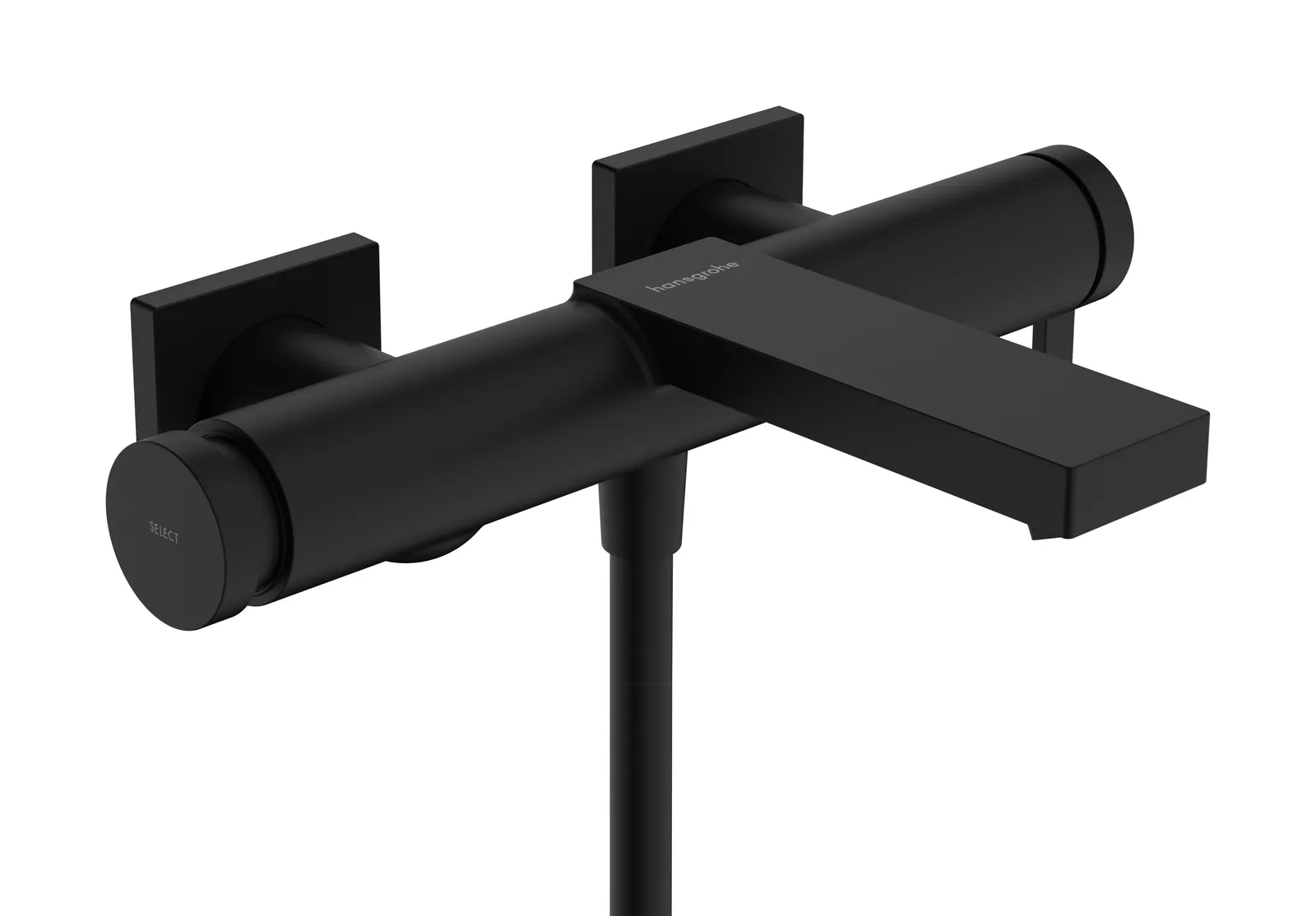

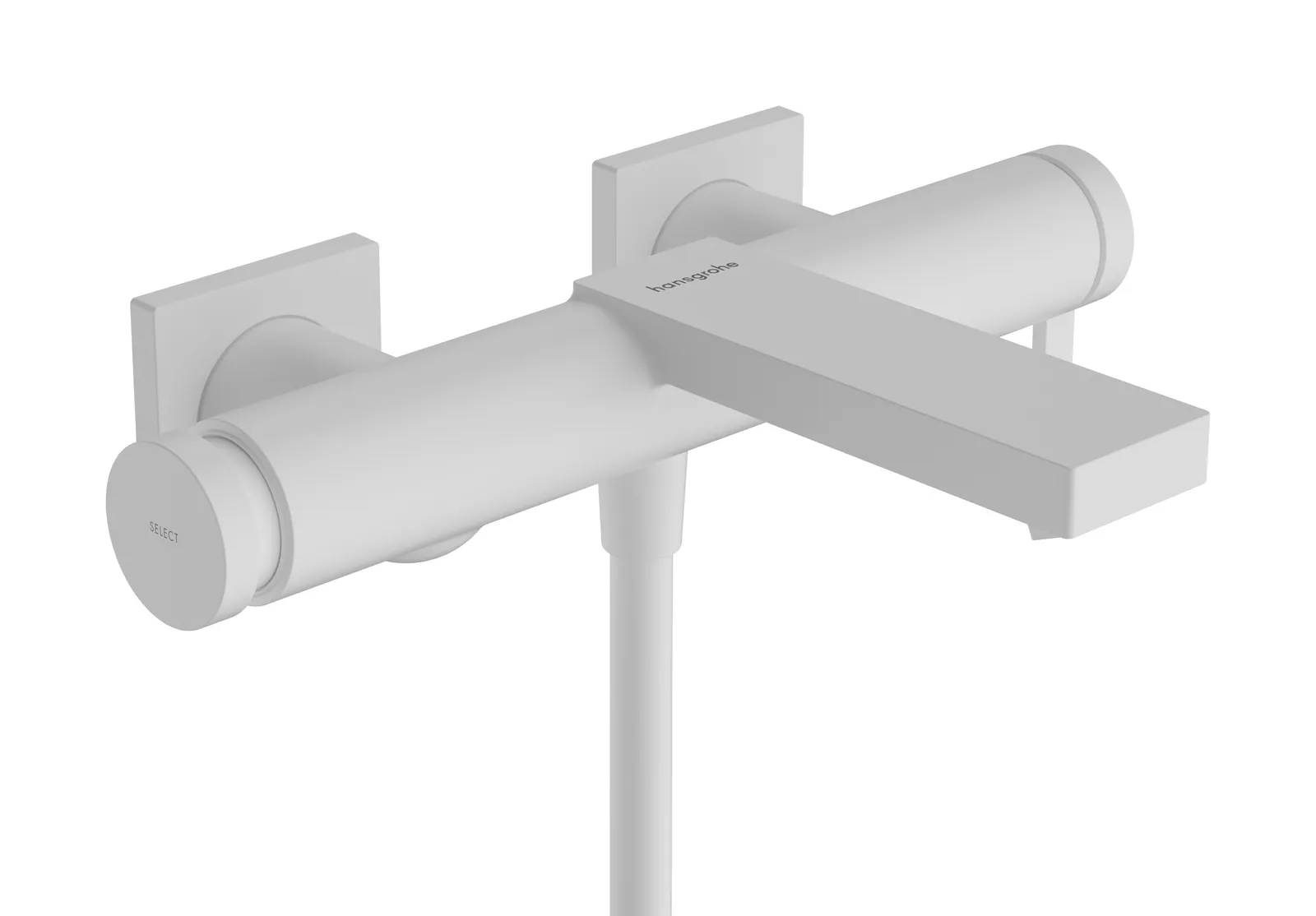

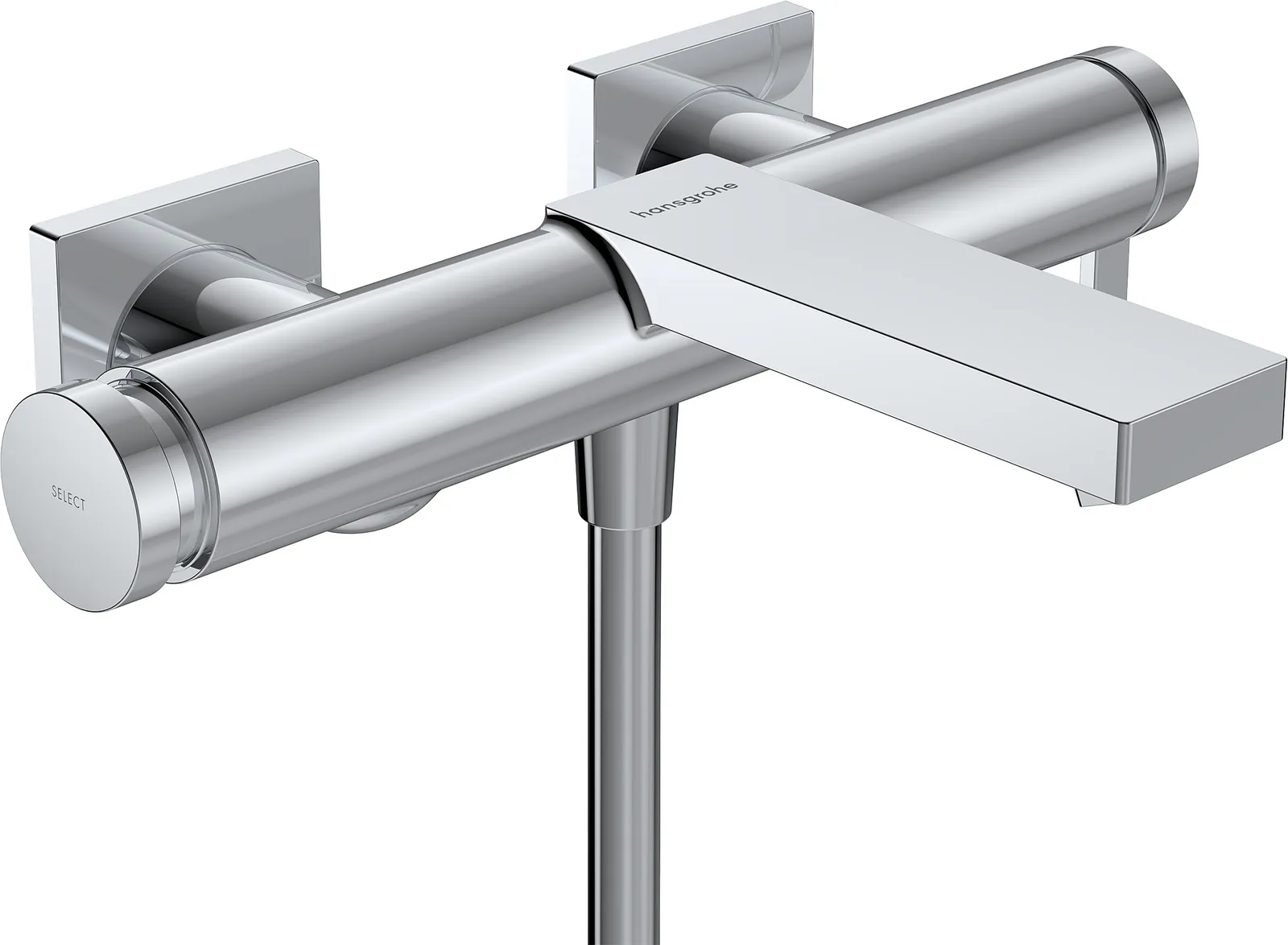

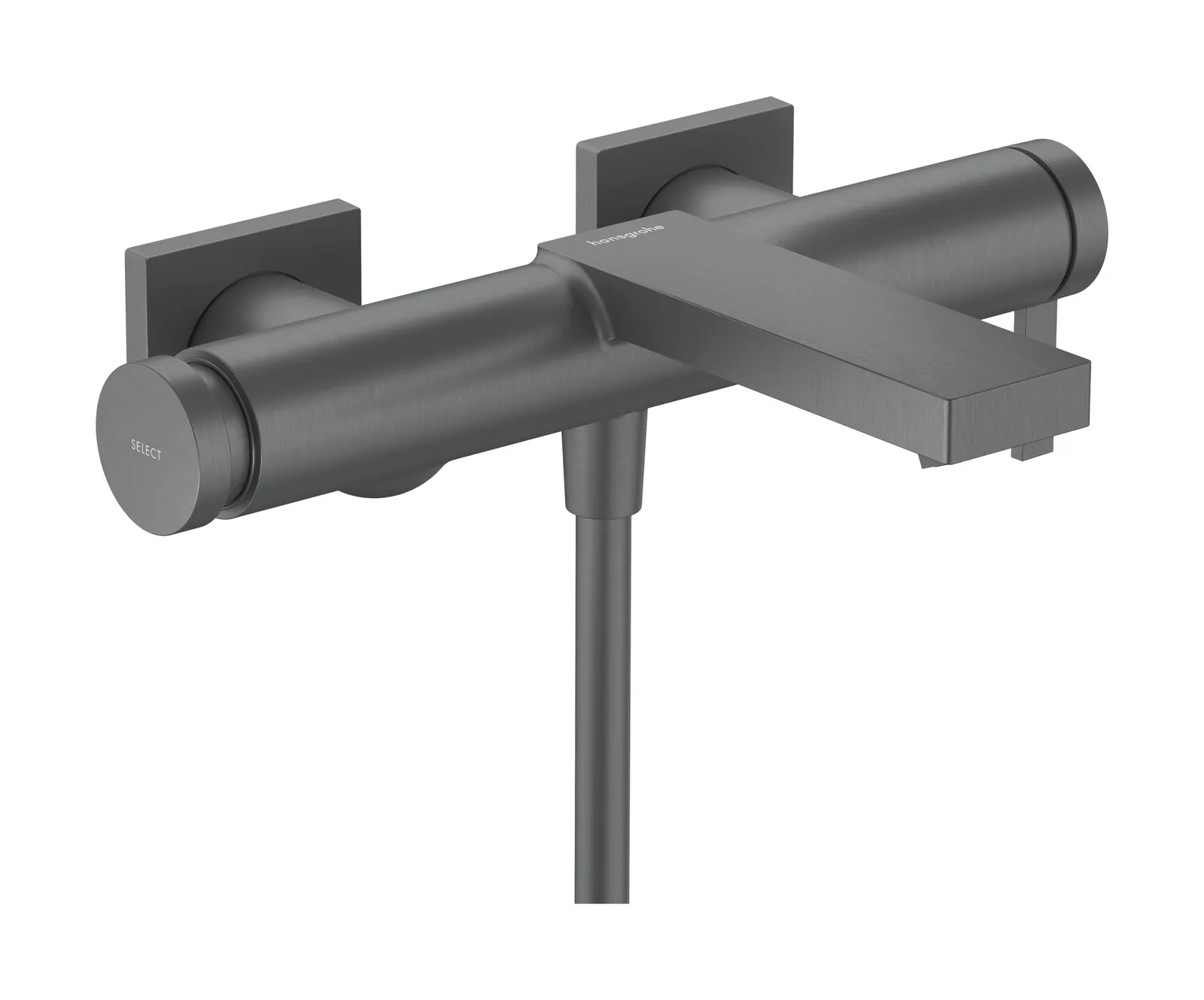

Tecturis E Single-lever bath mixer for exposed installation
73420000 · Mixers
Ref. 73420000
Made to order
Quantity
The Hansgrohe Tecturis E bath mixer provides convenient bath filling and shower control, keeping the series’ unified style in the interior. In this model, AirPower technology infuses the water with air — the jet is soft and full at a lower flow rate, while the Select button switches modes with a single press. Maximum flow at 3 bar pressure — 22 l/min. The model is available in 5 finishes, including: chrome, brushed bronze, brushed black chrome, matt black.
Specifications
- Brand
- Hansgrohe, Германия
- SKU
- 73420000
- Finish
- хром
- Size
- DN15
- Type
- Bath mixer
- Brand
- Hansgrohe (Germany)
- Series
- Tecturis E
- Article number
- 73420000
- Finish
- chrome
- Article numbers by finish/version
- 73420000 — chrome; 73420007 — chrome; 73420009 — chrome; 73420140 — brushed bronze; 73420340 — brushed black chrome; 73420670 — matt black; 73420700 — matt white
- Technologies
- AirPower, Select
- Spout projection
- 213 mm
- Centre-to-centre distance
- 150 ± 12 mm
- Mixer spray type
- WaterfallStream
- Max. flow at 3 bar
- 22 l/min
- Bath spout flow rate at 3 bar
- 22 l/min
- Max. hand shower flow at 3 bar
- 14.5 l/min
- Connection size
- DN15
- Connection type
- eccentric connectors (S-connections)
- Min. operating pressure
- 1 bar
- Max. operating pressure
- 10 bar
- Features
- 2 functions; ceramic cartridge; adjustable temperature limit; backflow protection to DIN EN 1717; with silencer; suitable for instantaneous water heaters; wall mounting
