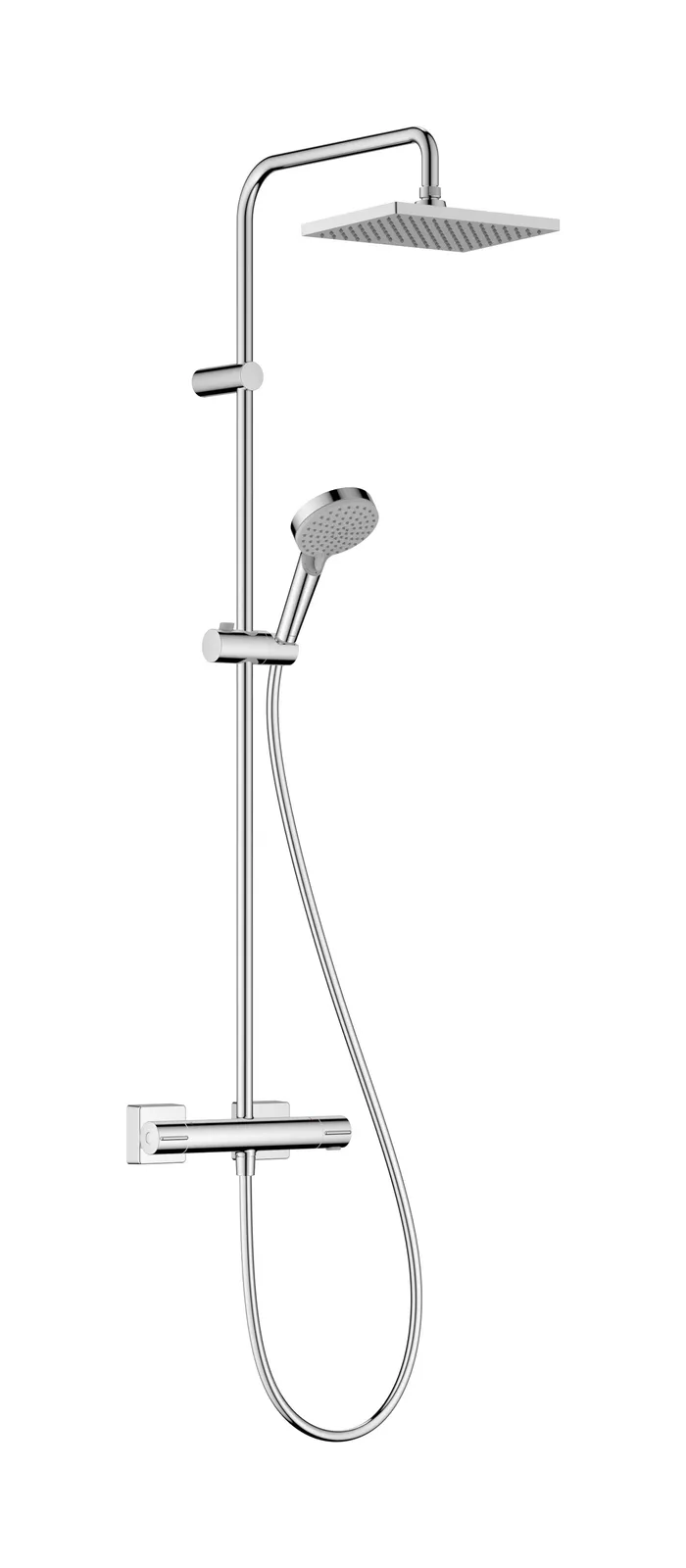

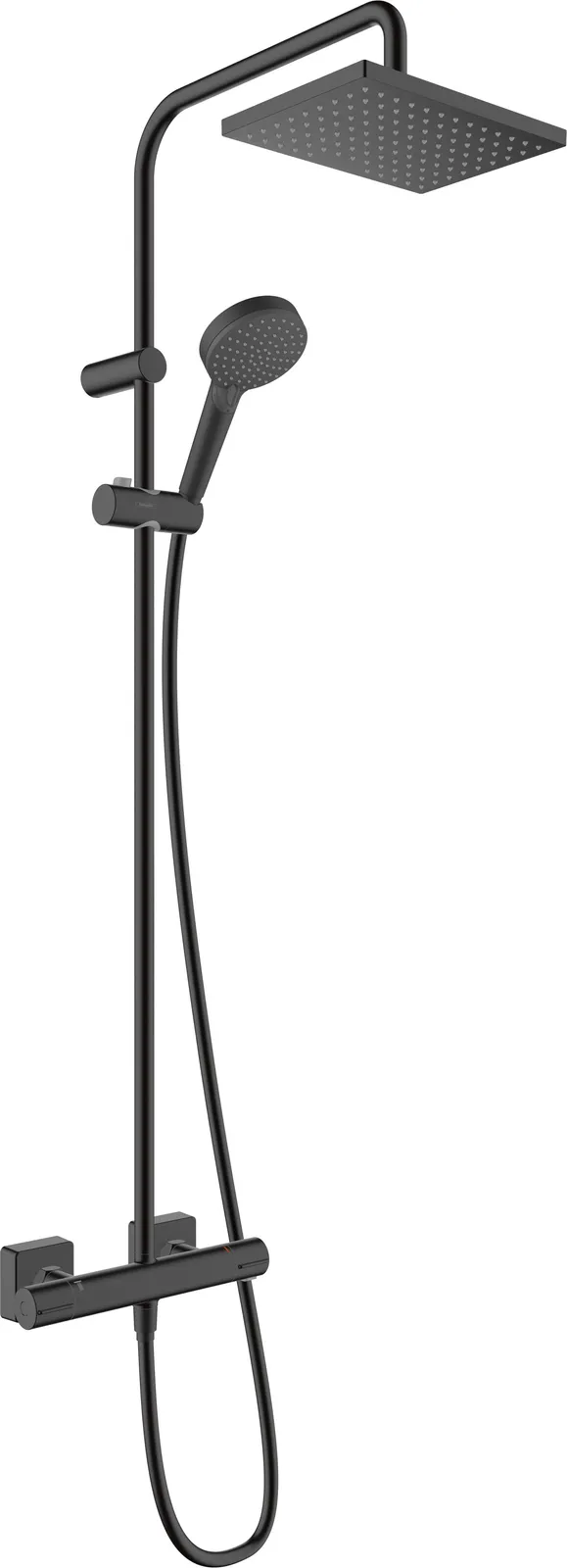

Vernis Shape Showerpipe 230 1jet EcoSmart with thermostat
26097000 · Shower systems · Made to order
Ref. 26097000
Quantity
The Hansgrohe Vernis Shape shower system combines an overhead shower and a hand shower with a control element in a single ready-made solution for the shower area. In this model EcoSmart limits the water flow and reduces the cost of heating it, and the silicone QuickClean nozzles are easily cleaned of limescale. Maximum flow rate at 3 bar pressure — 6.8 l/min. Available in 2 finishes, including: chrome, matt black.
Specifications
- Brand
- Hansgrohe, Германия
- SKU
- 26097000
- Finish
- хром
- Size
- 230 x 170 мм
- Type
- Shower system
- Brand
- Hansgrohe (Germany)
- Series
- Vernis Shape
- Article number
- 26097000
- Finish
- chrome
- Article numbers by finish/version
- 26097000 — chrome; 26097670 — matt black
- Technologies
- EcoSmart, QuickClean, XXL Performance
- Spray types
- Rain
- Contents
- overhead shower, hand shower, shower thermostat, shower hose, slider, shower rail
- Overhead shower size
- 230 x 170 mm
- Overhead shower spray type
- Rain
- Operates from flow rate
- 5.7 l/min
- Rain flow at 3 bar
- 6.5 l/min
- Hand shower spray type
- Rain, IntenseRain
- Max. hand shower flow at 3 bar
- 6.8 l/min
- Max. Showerpipe flow at 3 bar
- 6.8 l/min
- Min. flow pressure
- 1 bar
- Max. operating pressure
- 10 bar
- Swivel joint
- adjustable tilt angle of the overhead shower
- Overhead shower arm length
- 426 mm
- Installation type
- exposed mounting
- Connection size
- DN15
- Connection thread
- G ½
- Centre-to-centre distance
- 150 ± 12 mm
- Rail diameter
- 19 mm
- Features
- overhead shower Vernis Shape 230 1jet; height-adjustable slider with locking button; Vernis thermostat; SafetyStop — limiter at 40 °C; adjustable hot water limit; outlets controlled by a rotary handle; suitable for instantaneous water heaters; built-in backflow protection; 2 functions
