Acoustic elements Fiberglass Clouds
Huamei · Baffles and clouds
Huamei
Acoustic elements Fiberglass Baffles
huamei-fiberglass-baffles-cvetnoy · Baffles and clouds
4 variants
Made to order
Quantity

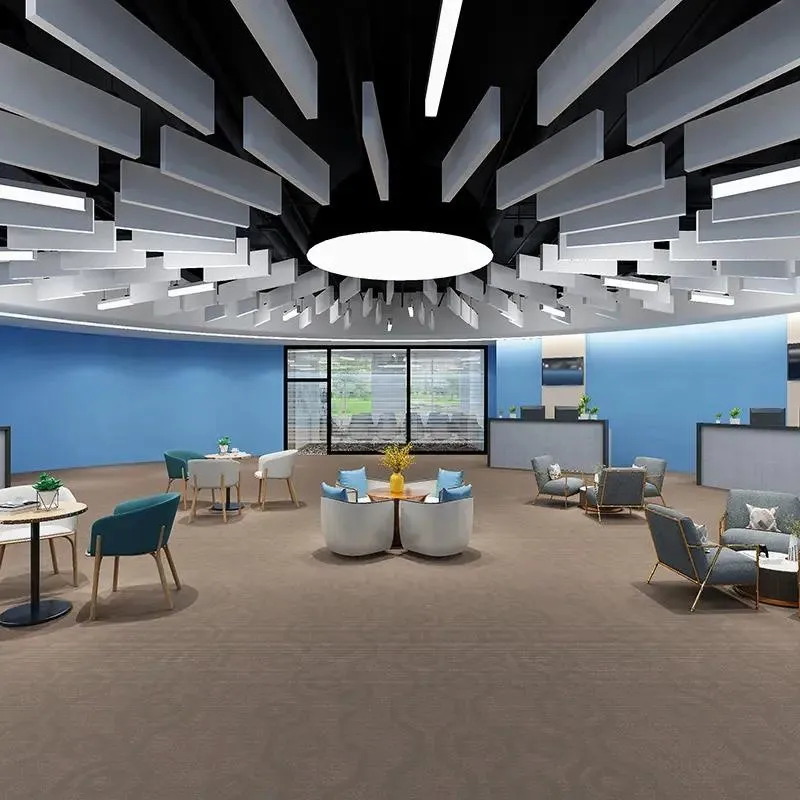

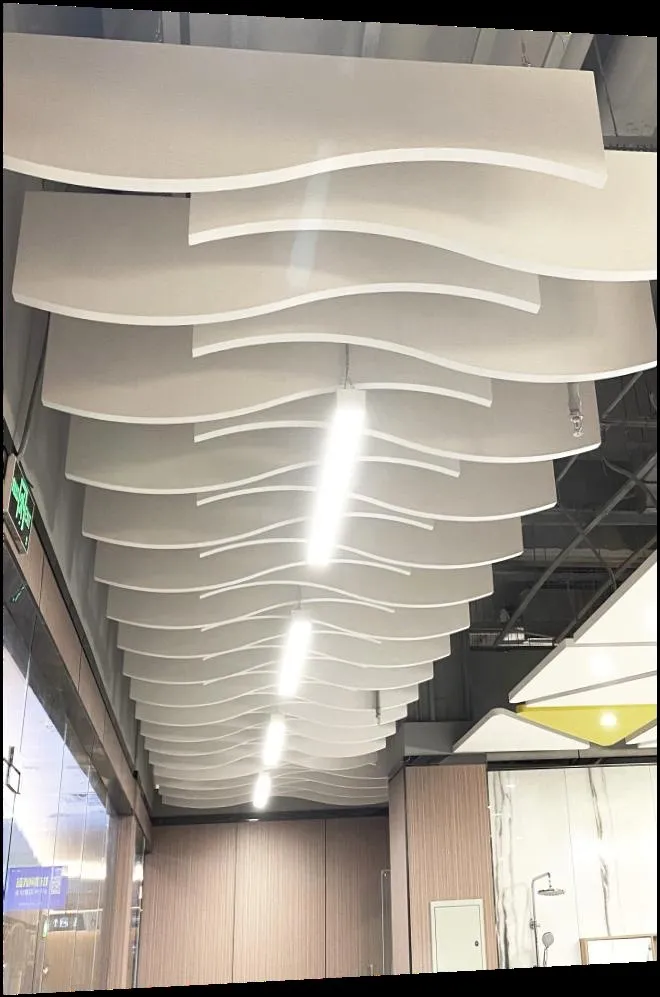

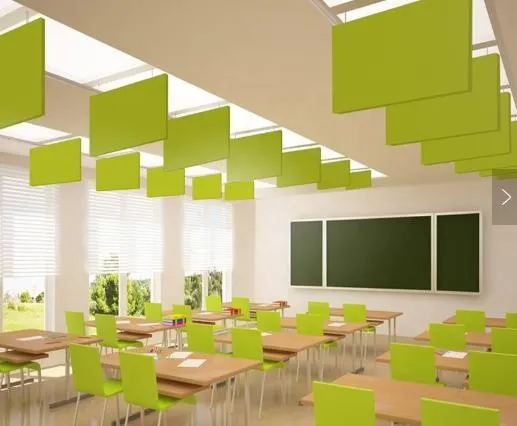

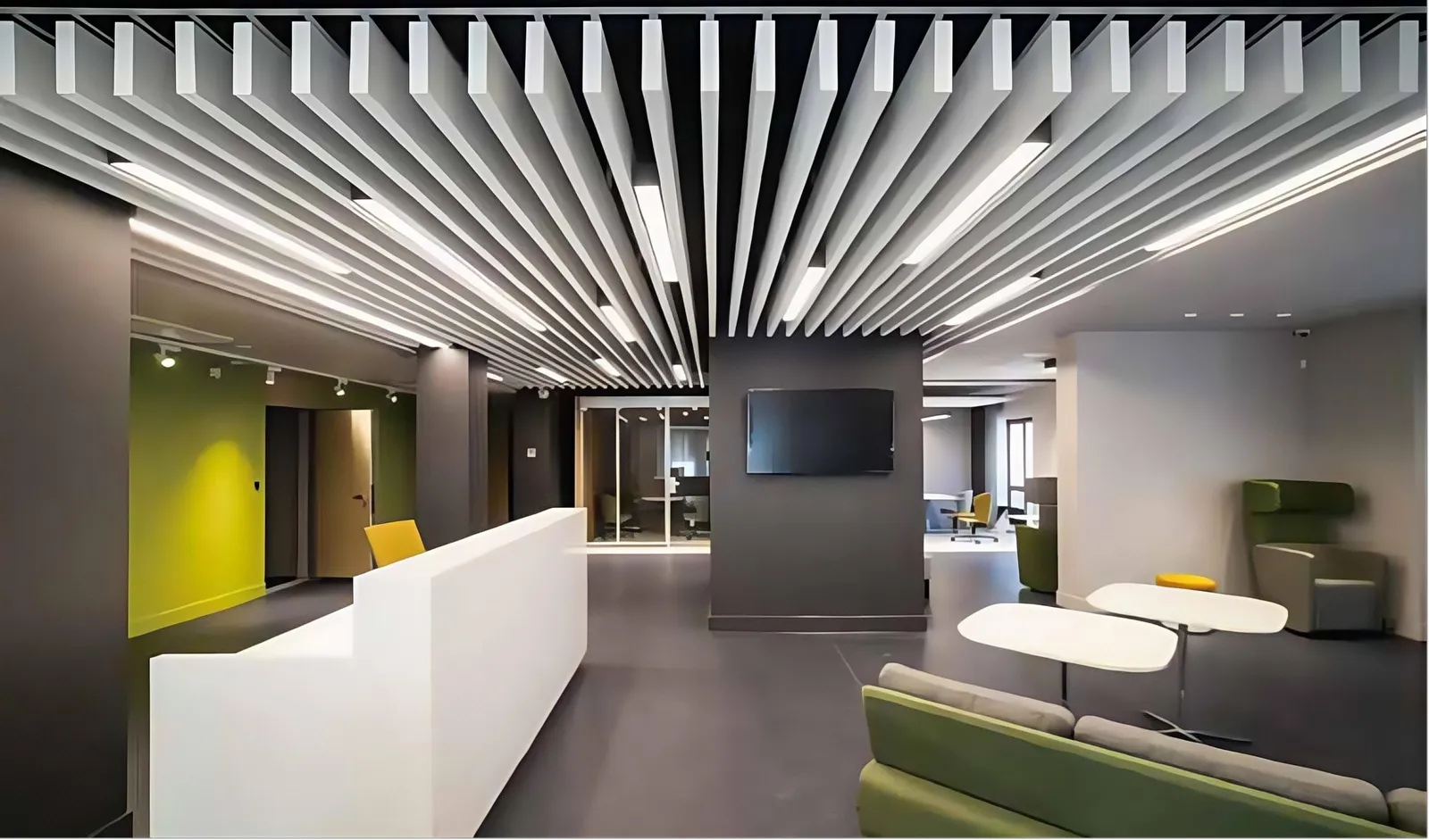

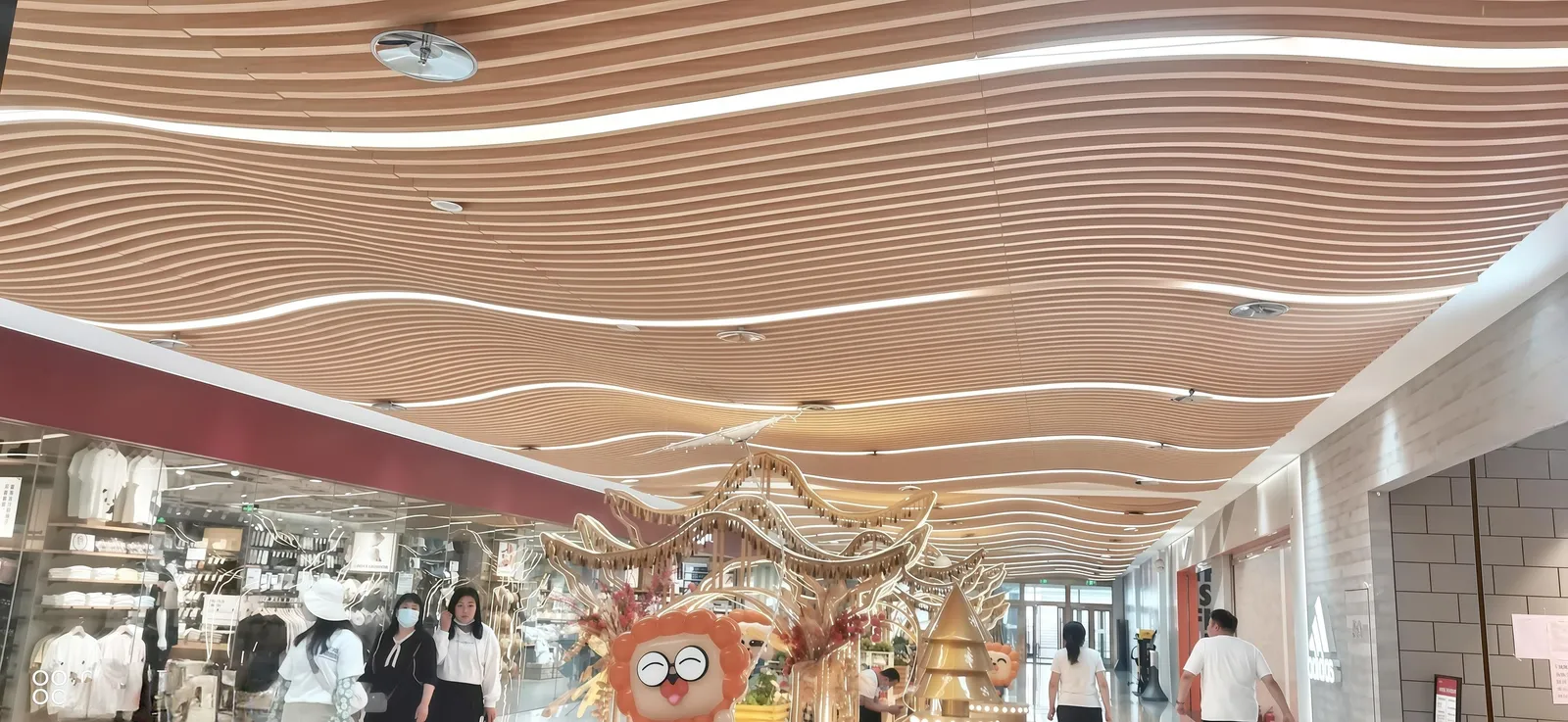

Vertical glass-fibre acoustic baffles: straight, wavy, coloured and wood-effect.
Specifications
- Brand
- Huamei, Китай
- SKU
- huamei-fiberglass-baffles-cvetnoy
- Size
- ширина 200 / 300 / 400 / 500 / 600 мм × длина 1200 / 1600 / 1800 / 2400 / 2700 мм; ширина до 1200 мм, длина до 3000 мм
- Base
- high-density fibreglass board (heat-treated)
- Face
- painted laminate with decorative glass-fibre tissue
- Colours
- smooth white HM000A; painted white HM600 / HM700 / HM800; smooth black HM000B; other colours — made to order
- Sound absorption
- NRC 0,9–1,0 (ISO 354, ISO 11654)
- Fire class
- A2, non-combustible (EN 13501-1)
- Moisture resistance
- does not sag or delaminate at humidity up to 95% and 40 °C
- Density
- 120 kg/m³
- Thickness
- 30 / 40 / 50 / 100 mm (30–100 mm possible)
- Size
- width 200 / 300 / 400 / 500 / 600 mm × length 1200 / 1600 / 1800 / 2400 / 2700 mm; width up to 1200 mm, length up to 3000 mm
- Installation
- vertical suspension on cables or to a supporting profile
- Certificates
- SGS, ISO 9001, CE
- Country of origin
- China
