Zambelli

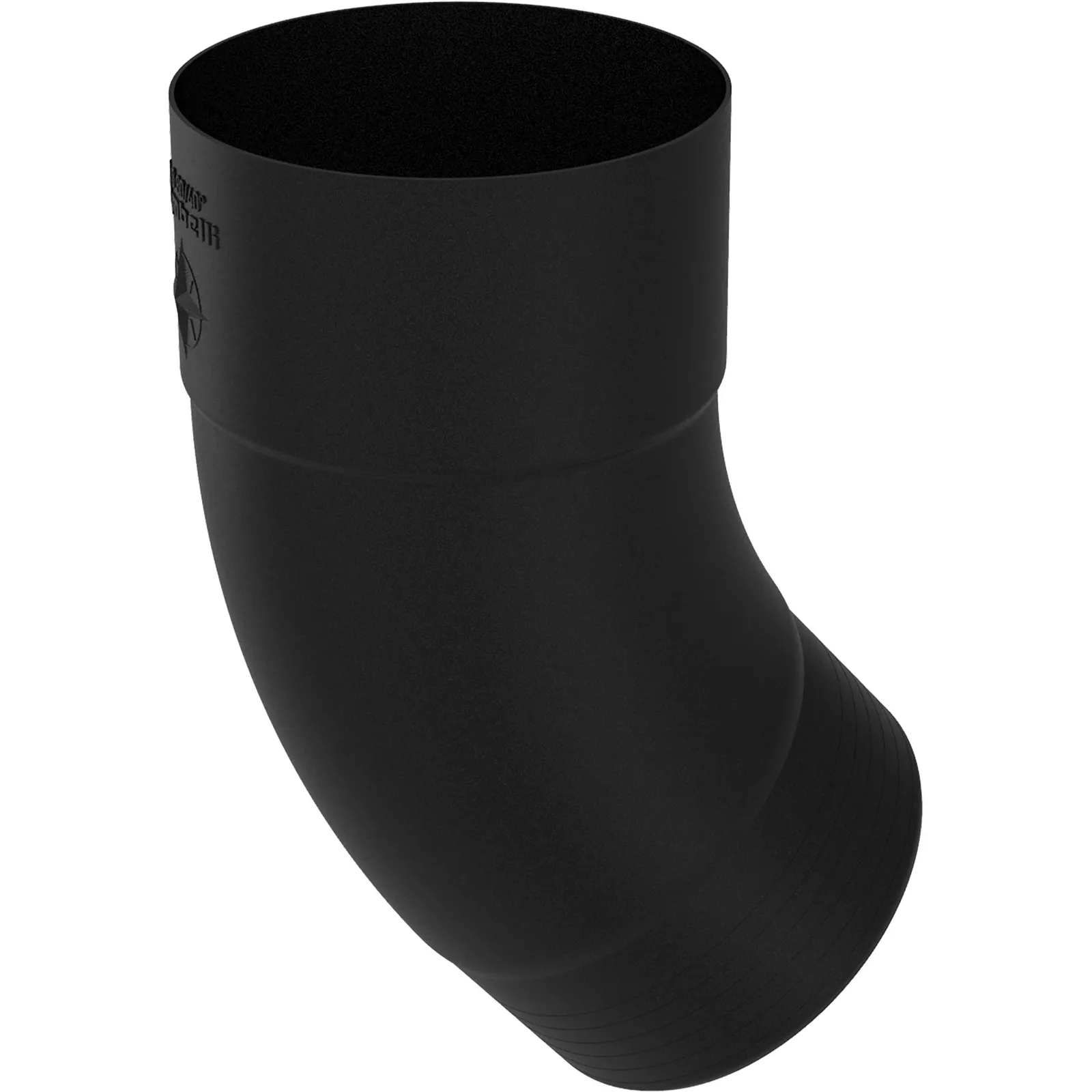

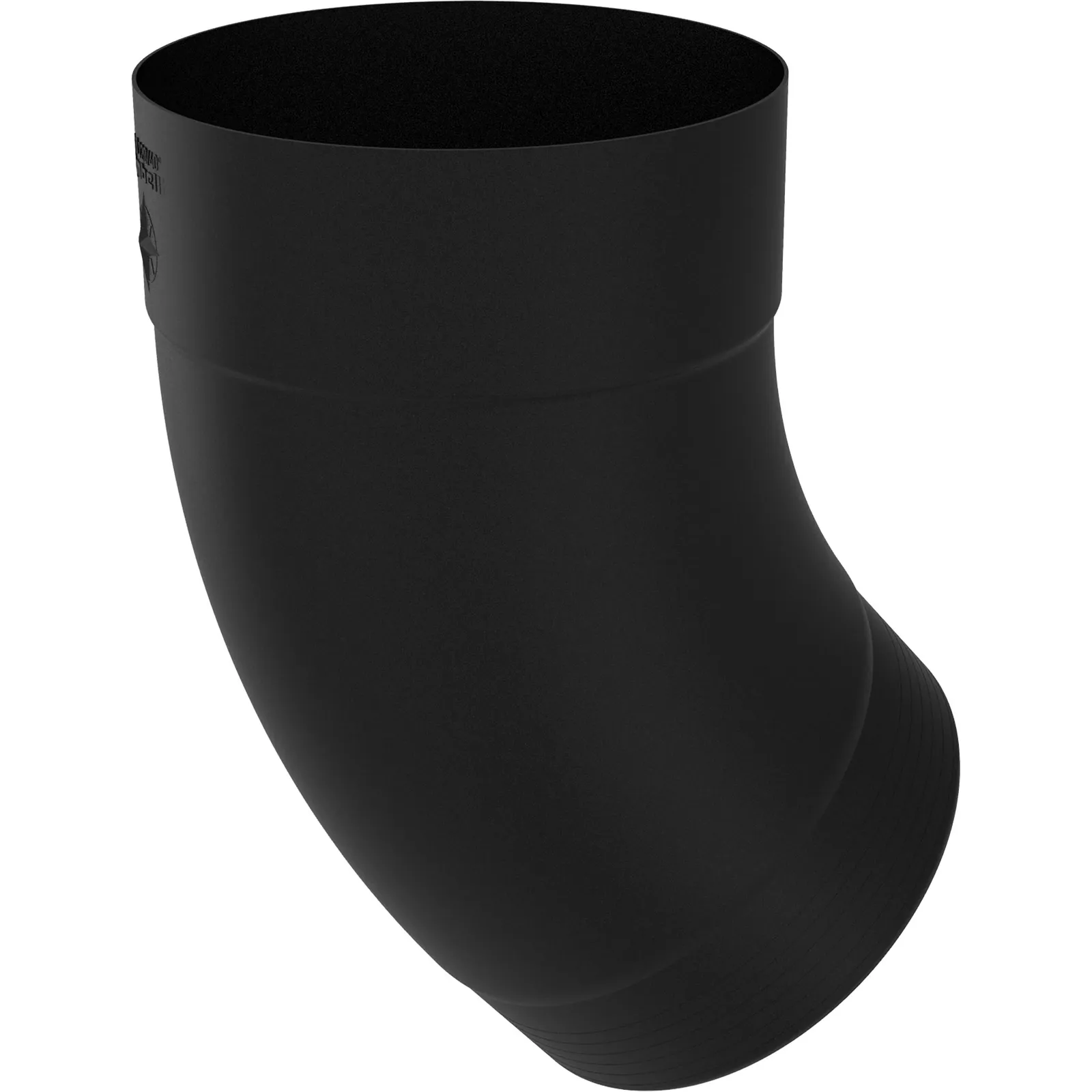

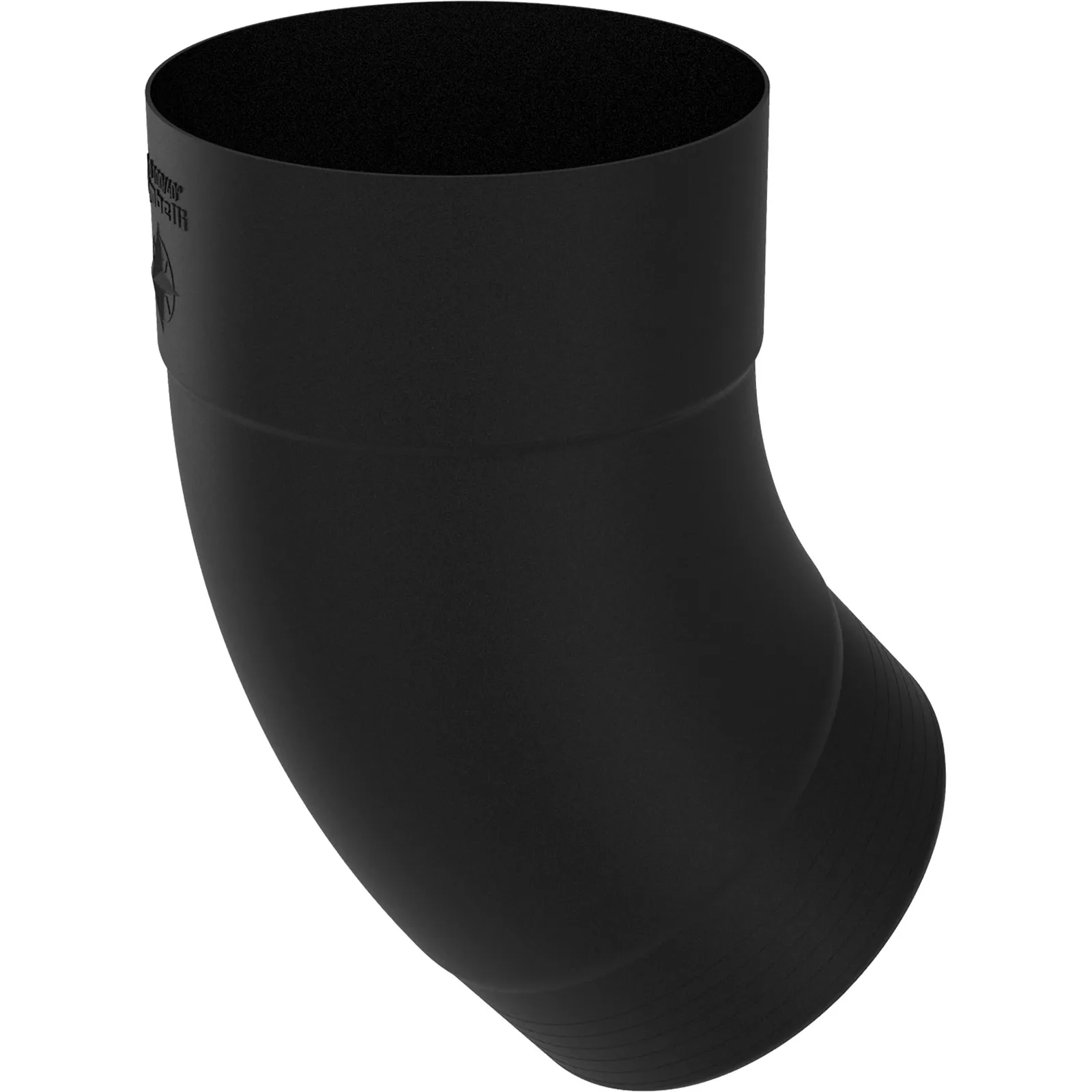

Meister bend 40° COLORDUR, black (RAL 9005)

243200-E-9005 · Rainwater drainage

Ref. 243200-E-9005

Made to order

Quantity

Gentle Meister bend for a smooth pipe offset where the eaves overhang is small. COLORDUR steel with a ZM120 zinc-magnesium layer and a two-layer matt coating is designed for atmospheres up to class C4. Version: COLORDUR steel (DX53 + ZM120, polyester coating 35 µm), colour black (RAL 9005); sizes: 120/40°, 100/40°, 80/40°.

Specifications

Brand
Zambelli, Германия
SKU
243200-E-9005
Finish
цинк-магний ZM120 + полиэфир 35 мкм, матовое
Manufacturer
Zambelli (Germany)
Product type
Meister bend 40°
Section
Pipe bends and offsets
Material
COLORDUR steel (DX53 + ZM120, polyester coating 35 µm)
Colour
black (RAL 9005)
Coating
zinc-magnesium ZM120 + polyester 35 µm, matt
Sizes
120/40°; 100/40°; 80/40°
Articles
243200-E-9005 (COLORDUR Meister-Bogen 40 Grad 120 mm, Schwarz); 243205-E-9005 (COLORDUR Meister-Bogen 40 Grad 100 mm, Schwarz); 243215-E-9005 (COLORDUR Meister-Bogen 40 Grad 80 mm, Schwarz)
Number of articles
3
Purpose
Bends of various angles to set the downpipe off from the wall and plinth.
