Spacer profile Thermo-Z RIB-ROOF

407120-120 · Roof systems

Ref. 407120-120

Made to order

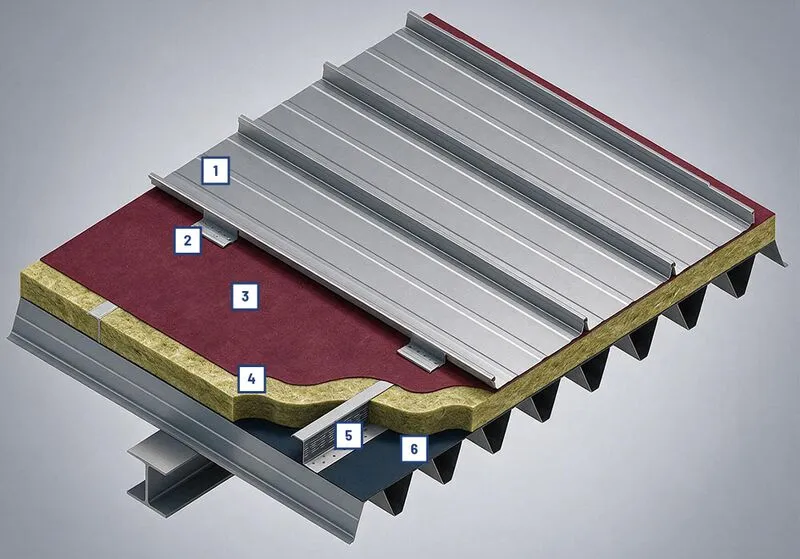

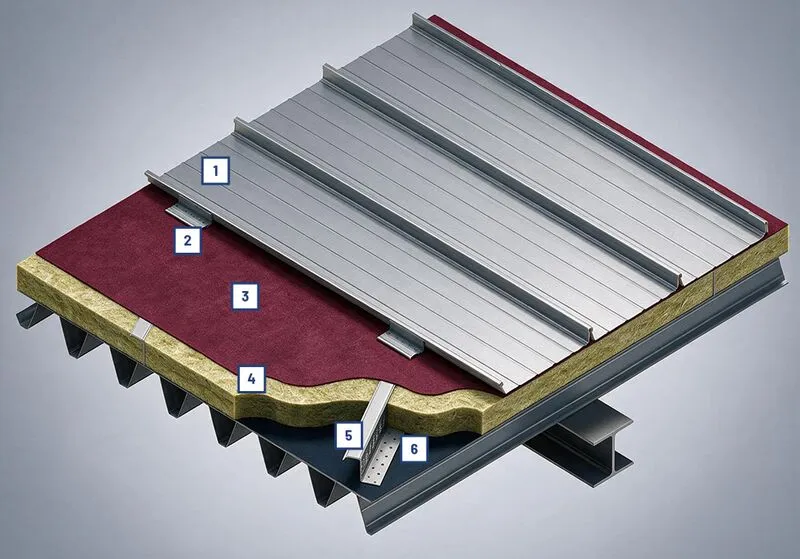

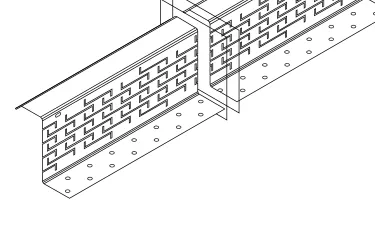

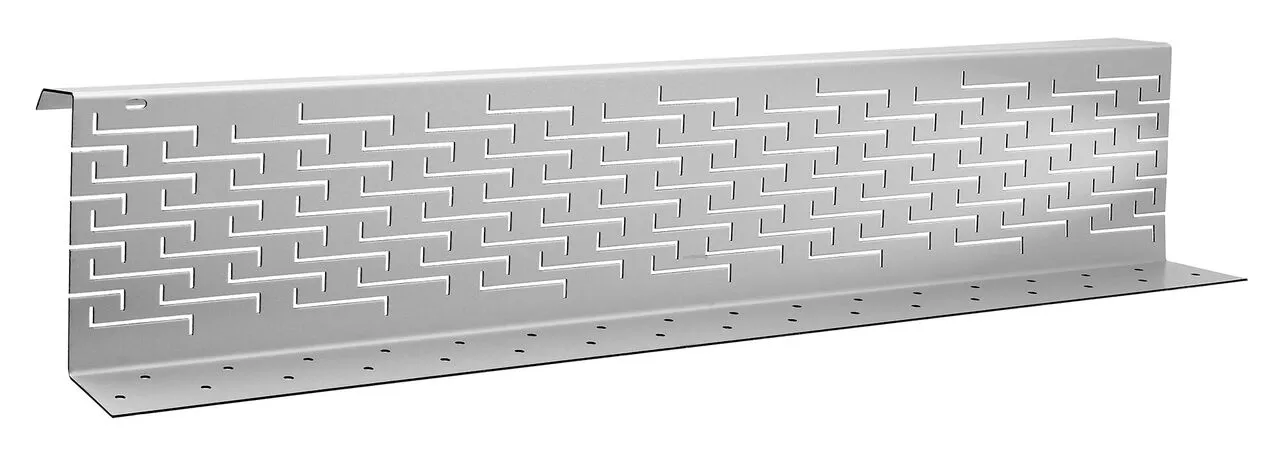

The perforated Z profile made of S320 steel carries the clips above the insulation layer and noticeably reduces thermal bridges thanks to the perforation. Suitable for insulation from 120 to 240 mm thick (up to 300 mm on request).

Specifications

Brand

Zambelli, Германия

SKU

407120-120

Manufacturer

Zambelli RIB-ROOF (Germany)

Compatibility

RIB-ROOF Evolution, Speed 500, 465

Material

steel S320, 2.00 mm

Insulation 120 / 140 / 160 / 180 / 200 / 220 / 240 mm — article numbers

407120-120 / -140 / -160 / -180 / -200 / -220 / -240

Height of perforated zone

93 / 115 / 126 / 137 / 159 / 181 / 181 mm
