Standing-seam roofing RIB-ROOF Evolution profiled sheet, aluminium, special finishes

600975 · Roof systems · Made to order

Ref. 600975

Quantity

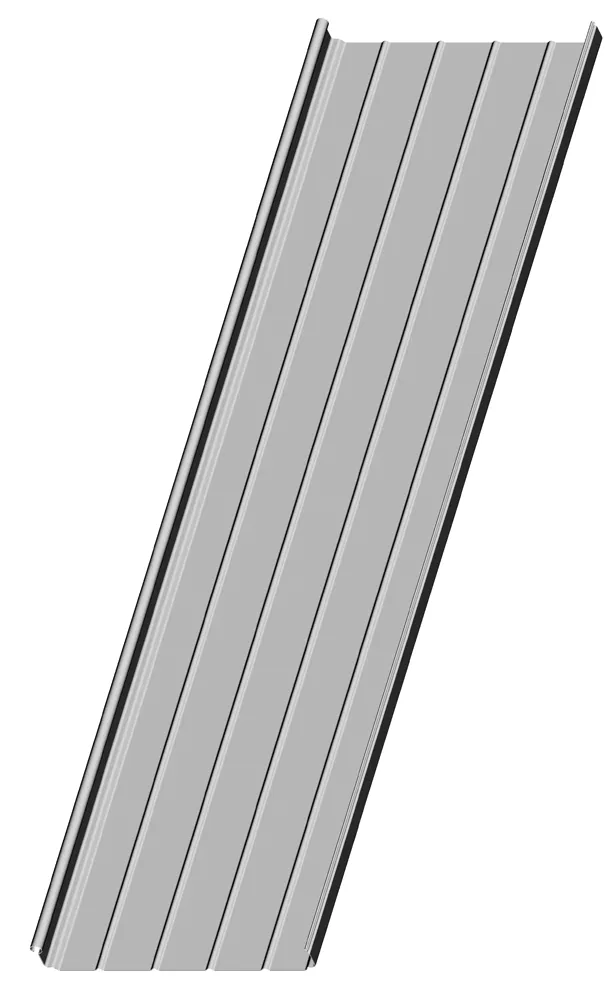

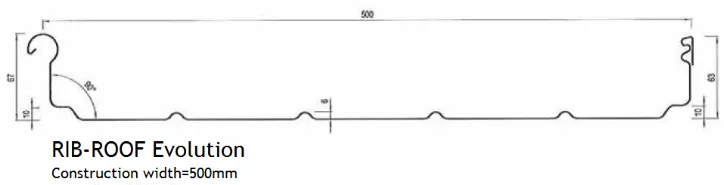

The RIB-ROOF Evolution profiled sheet, 500 mm wide with a rib height of 67 mm (rounded slim rib), is laid on concealed sliding clips without through-holes in the roof. Aluminium with special finishes imitates noble metals: patinated copper, natural zinc or a matt patina, while remaining lightweight and corrosion-resistant. Sheets are made to the size of the project and suit roofs from 1.5° and facades.

Specifications

Brand
Zambelli, Германия
SKU
600975
Manufacturer
Zambelli RIB-ROOF (Germany)
System
RIB-ROOF Evolution
Type
standing-seam profiled sheet with sliding seam
Installed (cover) width
500 mm; also 333 / 400 mm, special up to 600 mm
Rib height
67 mm
Min. roof pitch
1,5°
Sheet length
up to 33 m (longer — on-site profiling)
Sheet shapes
straight, tapered, curved (convex/concave), tapered-curved
Fastening
sliding clips without perforating the roofing
Certification (steel, aluminium)
ETA-17/1068, ETA-17/1069 (CE)
Material and thickness — article number
aluminium “Patina” (Alu Patina) 0.70 mm — 600975; aluminium “zinc look” (Zinc Look) 0.70 mm — 600472; aluminium “zinc look” (Zinc Look) 1.00 mm — 600412; aluminium stucco “matt patina” 0.70 mm — 600473; aluminium stucco “matt patina” 1.00 mm — 600413
Surface options
Alu Patina, Aluminium Zinc Look, Stucco Patina Matt, AluNatur (on request)
Delivery
with protective film
Options
anti-condensation fleece (up to 900 g/m²), acoustic fleece (−6 dB rain noise), tapered and curved rolling, on-site profiling
