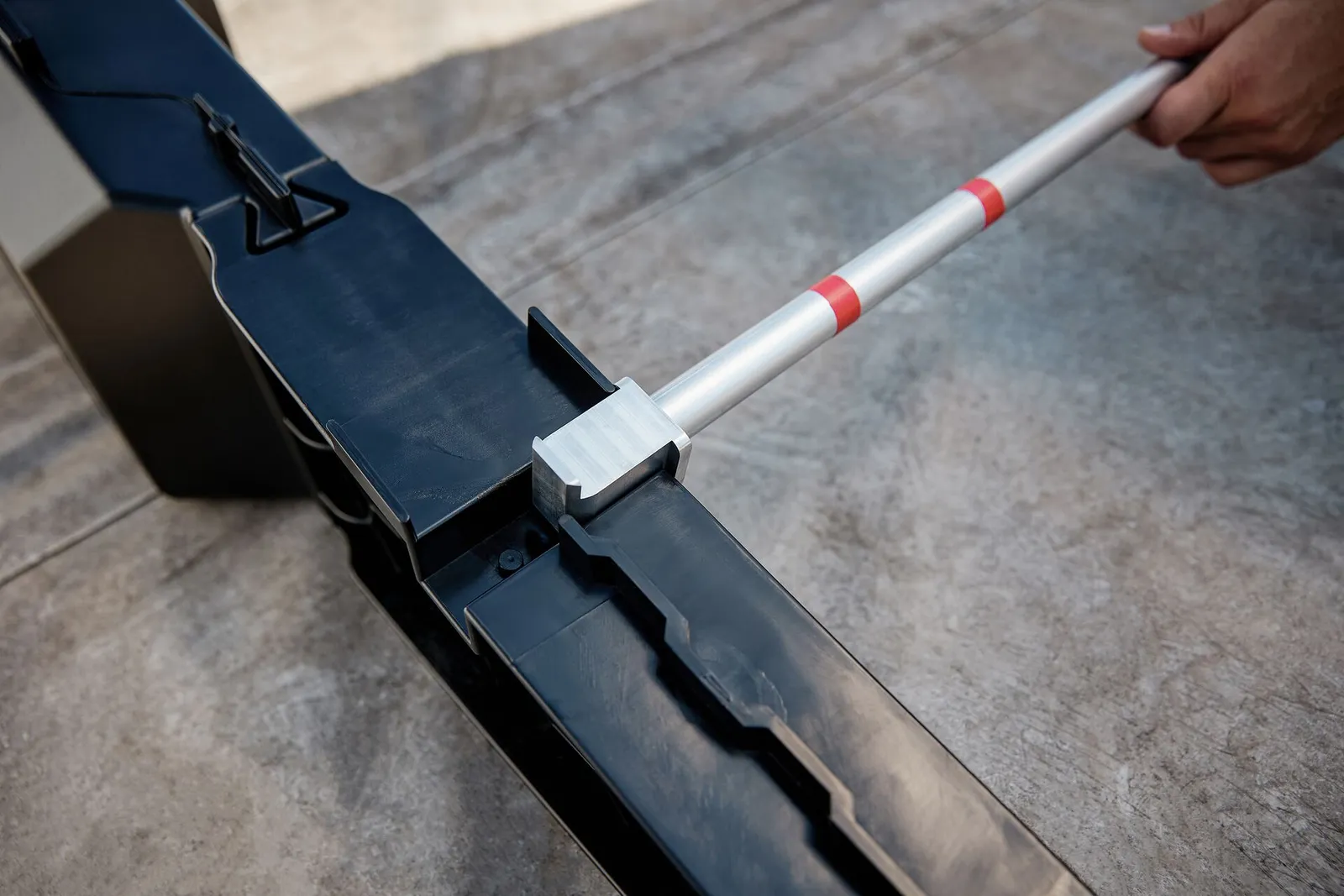

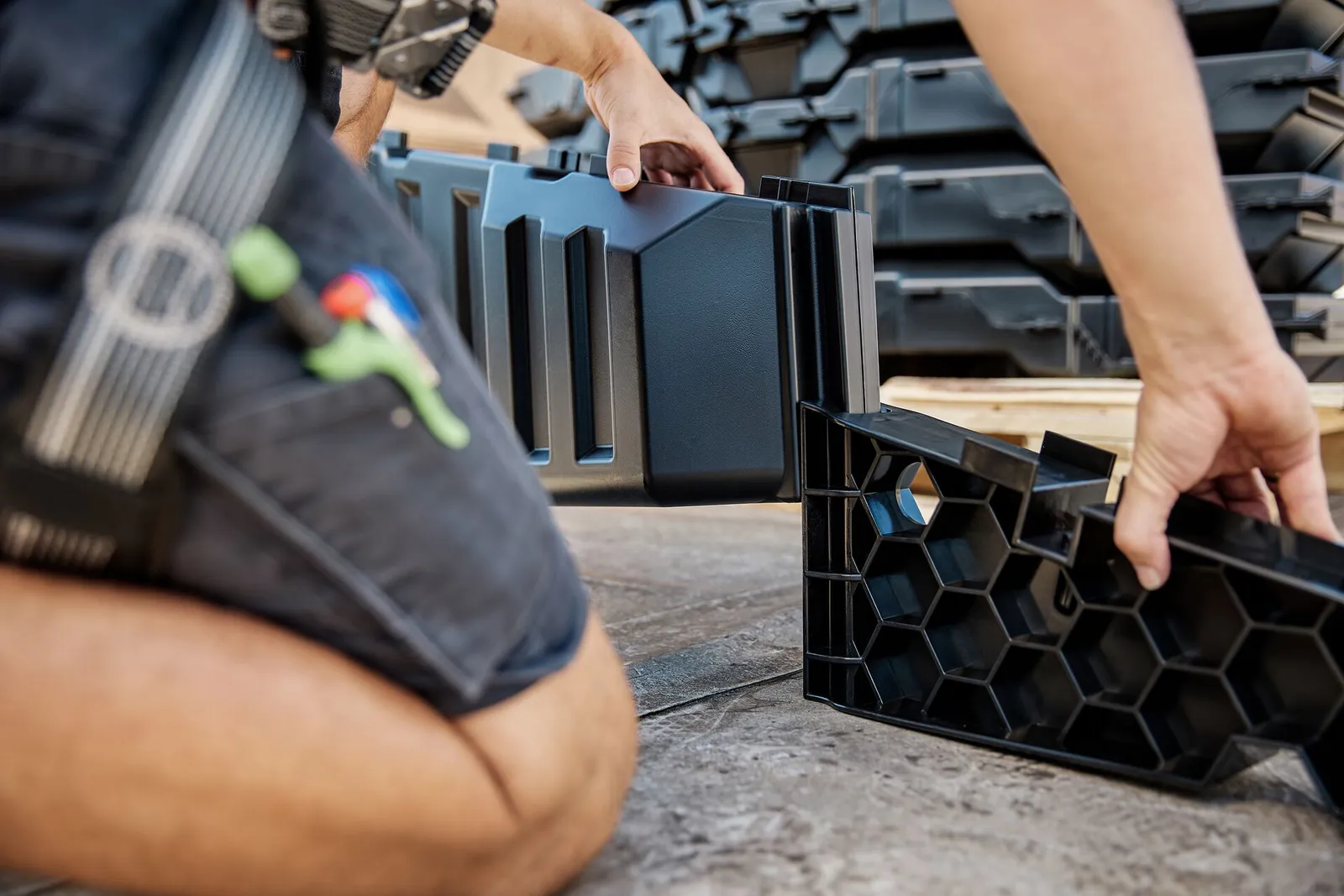

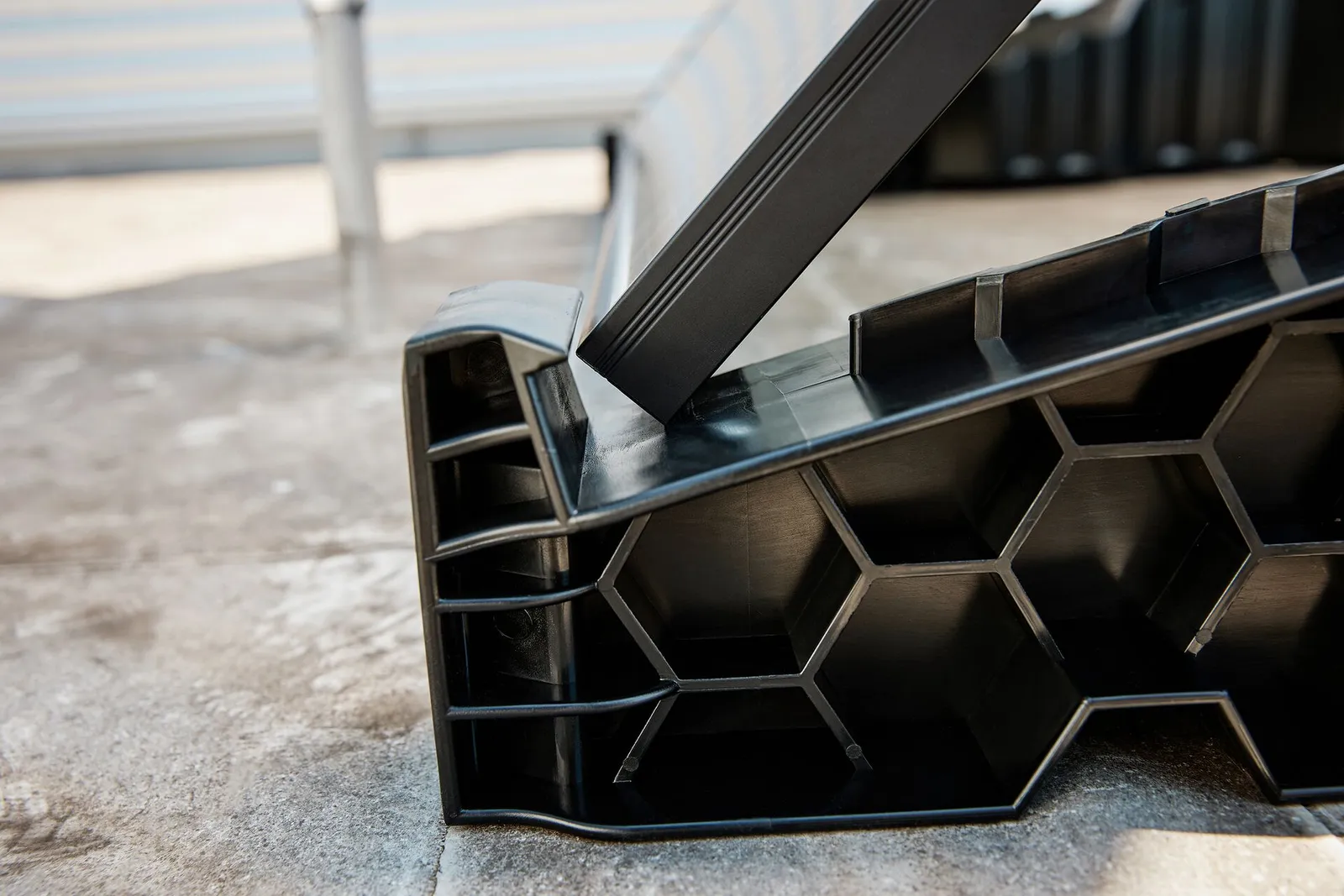

Ballast support for solar panels HSF Ballast-Tank
HSF · Rainwater drainage
Ref. HSF
Made to order
Quantity
Plastic support tank for mounting solar modules on a flat roof in an east–west layout. Instead of concrete blocks the tank is filled with water, and evaporated water is replenished by rain through a funnel in the lid. The roofing is neither pierced nor glued.
Specifications
- Brand
- Zambelli, Германия
- SKU
- HSF
- Size
- 1129–1136 мм (иные по запросу)
- Manufacturer
- Zambelli (Germany)
- Material
- HDPE polyethylene, UV-resistant
- Orientation
- east / west
- Module tilt
- 15°
- Module width
- 1129–1136 mm (others on request)
- Module frame height
- 29–31 mm
- Empty tank weight
- approx. 5 kg
- Empty structure weight
- approx. 7 kg
- Water volume
- up to approx. 40 l
- Total weight
- approx. 47 kg
- Operating temperature
- from −30 to +80 °C
- Fire class
- B2
- Substrate
- bitumen, PVC/TPO membrane, green roof, gravel
- Application
- flat roofs, balcony power plants, ground-mounted installations
